Description

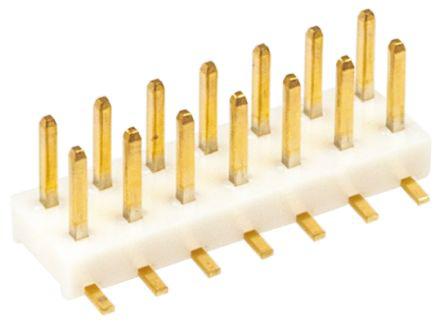

A3-16PA-2SV(71) Hirose Electric Co Ltd | Connectors, Interconnects 16 Positions Header Connector 0.079″ (2.00mm) Surface Mount Gold
Specifications
Manufacturer: Hirose Electric
Product Category: Headers & Wire Housings
RoHS: Details
Product: Headers
Type: Pin Strip
Number of Positions: 16 Position
Pitch: 2 mm
Number of Rows: 2 Row
Mounting Style: Through Hole
Termination Style: Through Hole
Contact Gender: Pin (Male)
Contact Plating: Gold
Series: A3
Packaging: Tube
Current Rating: 1 A
Voltage Rating: 200 V
Brand: Hirose Connector
Contact Material: Brass
NumOfPackaging: 1
Factory Pack Quantity: 1
Unit Weight: 0.011993 oz
[Features]
· Small, high-density mounting: A small, lightweight design enables high-density mounting.
· Also, the crimped slip case can be used by aligning connectors in a 2 mm grid.
· Product variation: In addition to dip types, there are SMT and crimp types, and thus a wide array of variations is provided.
· Stacking variation: When used board-to-board in combination with the A3B pin header, the distance between the boards can be set to 6 mm, or 5.2 mm when used in combination with the A3C pin header.
In-stock items are made-to-order, so returns and cancellations are not possible. Thank you for your understanding.
Manufacturer:Hirose Connector
Datasheet:Hirose/Hirose.pdf
