Description

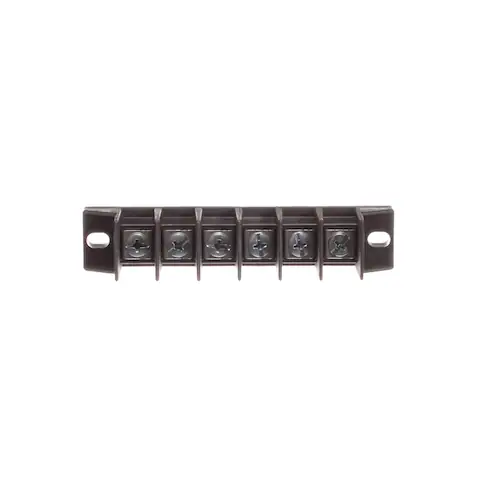

A401306 Bussmann / Eaton Barrier Terminal Block 1 Row 35A 600V Panel Mount RoHS
Specifications of A401306
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Standard Package: 200
Category: Connectors, Interconnects
Family: Terminal Blocks – Barrier Blocks
Series: Magnum A4000
Packaging: Bulk
Terminal Block Type: Barrier Block
Number of Circuits: 6
Number of Wire Entries: 6
Pitch: 0.562″ (14.27mm)
Number of Rows: 1
Current Rating: 35A
Voltage Rating: 600V
Wire Gauge: 10-16 AWG
Top Termination: Screws with Captive Plate
Bottom Termination: Solder Turret, Insulated
Barrier Type: 2 Wall (Dual)
Features: Flange
Color: Black
Terminal Screw Material: Steel
Terminal Screw Finish: Zinc
Mounting Type: Chassis, Panel
Operating Temperature: -40C to 105C
Material – Insulation: Thermoplastic
Material Flammability Rating: UL94 V-0
Weight: 0.001 KG
Alternative Part (Replacement): A401306
Manufacturer: Eaton
MFG Part #: A401306
