Description

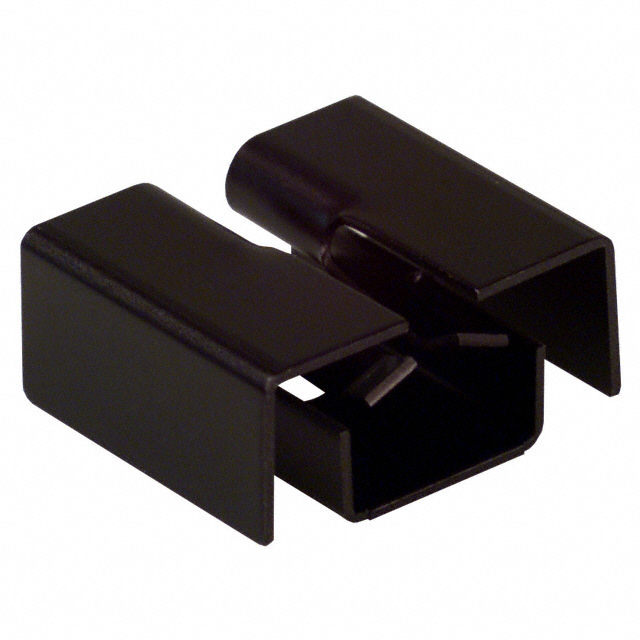

AAVID 5802B Slide On Heat Sink for DIP-14 or 16 Chips
For Use With DIP
Length 22.61mm
Width 15.24mm
Height 10.42mm
Dimensions 22.61 x 15.24 x 10.42mm
Thermal Resistance 20°C/W
Colour Black
Material Aluminium
Special Features Slide on Heat Sink with Angled Fins Attaches to 14 and 16 Pin Dip Packages Quickly and Easily
Series 5802
These heat sinks from Aavid Thermalloy feature an integrated clip that negates the need for mounting hardware (screws, nuts, or hole patterns). These heat sinks are available in a variety of shapes and sizes depending on power load to be dissipated and offer extreme versatility and ease of use while cutting down on assembly time and engineering costs. Aavid offers a wide range of clip on heat sinks for numerous applications. Styles are available for vertical or horizontal mounting with or without solderable tabs. The clip on system improves mounting surface contact providing superior thermal transfer over conventional hardware mounting methods.
Manufacturer Part Number: 5802B
Aavid Thermalloy
