Description

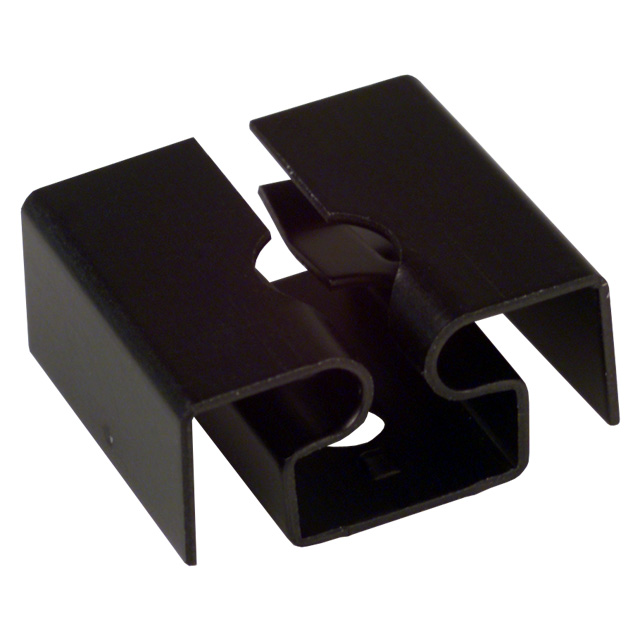

Aavid Thermalloy 574102B00000 HEATSINK TO-220 CLIP-ON BLK
Manufacturer Aavid Thermalloy
Manufacturer Part Number 574102B00000
Type Board Level
Package Cooled TO-220
Attachment Method Clip
Shape Rectangular
Length 0.750″ (19.05mm)
Width 0.860″ (21.84mm)
Diameter –
Height Off Base (Height of Fin) 0.395″ (10.03mm)
Power Dissipation @ Temperature Rise 1.5W @ 40°C
Thermal Resistance @ Forced Air Flow 8°C/W @ 500 LFM
Thermal Resistance @ Natural 23.2°C/W
Material Aluminum
Material Finish Black Anodized
Thermal resistance value is based a 75°C rise in natural convection.
Low cost labor saving slide on heat sink featuring spring action
Height:
19.05
Mount Orientation:
Vertical & Horizontal
Finish:
Black Anodize
RoHS:
compliant
Thermal Resistance:
23.20
Manufacturer Part Number: HS111
Manufacturer: Aavid Thermalloy
