Description

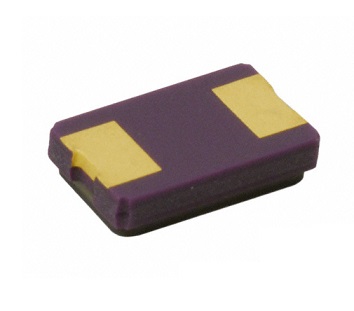

ABM3-27.000MHZ-B2-T ABRACON CORPORATION Crystal 27MHz 20ppm (Tol) 50ppm (Stability) 18pF FUND 50Ohm 2-Pin CSMD T/R RoHS
Brand: ABRACON
Frequency: 27 MHz
Tolerance: 20 PPM
Frequency Stability: 50 PPM
Load Capacitance: 18 pF
Termination Style: SMD/SMT
Package / Case: 5 mm x 3.2 mm
Operating Temperature Range: – 20 C to + 70 C
Dimensions: 3.2 mm W x 5 mm L x 1.3 mm H
Packaging: Reel
Case Height: 1.3 mm
Case Length: 5 mm
Case Width: 3.2 mm
ESR: 30 Ohms
Mounting Style: SMD/SMT
Manufacturer Part Number: ABM3-27.000MHZ-B2-T
Abracon
