Description

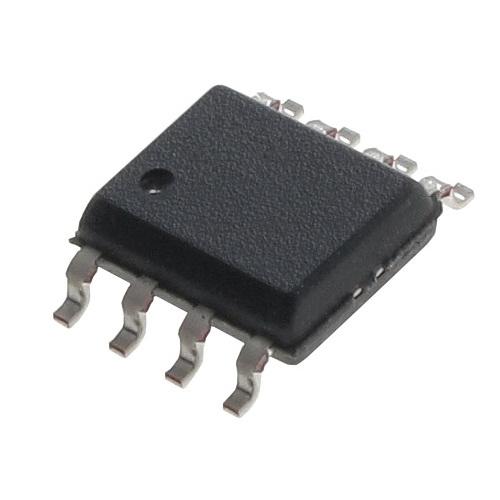

ACS723LLCTR-05AB-T Allegro High Acuracy 3.3V Optimized Current Sensor 5A Channel Hall Effect, Open Loop Bidirectional 8-SOIC RoHS
This ACS723LLCTR-05AB-T current sensor from Allegro MicroSystems ensures that proper current levels are passing through your electronic device. This device’s minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. This part has a temperature range of -40C to 150C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.
Specifications
Type Open Loop
Module/IC Classification IC
Sensing Current Type AC|DC
Typical RMS Primary Current (A) 5
Accuracy (%) 3
Typical Response Time (us) 22.5
Maximum Output Voltage (V) 25
Minimum Operating Supply Voltage (V)4.5
Typical Operating Supply Voltage (V)5
Maximum Operating Supply Voltage (V)5.5
Sensitivity (mV/A) 400
Minimum Operating Temperature (C)-40
Maximum Operating Temperature (C)150
Packaging Tape and Reel
Standard Package Name SOP
Pin Count 8
Supplier Package SOIC N
Mounting Surface Mount
Package Height 1.5(Max)
Package Length 4.9
Package Width 3.9
PCB changed 8
Lead Shape Gull-wing
Manufacturer: Allegro
MFG Part #: ACS723LLCTR-05AB-T
