Description

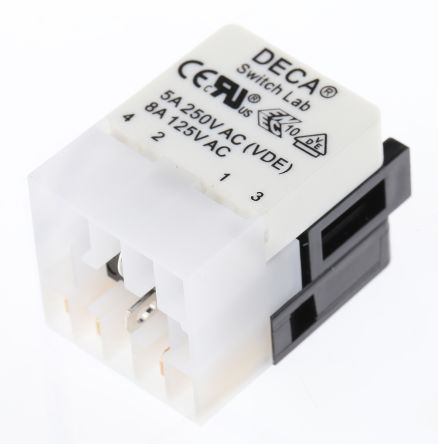

ADA16-B Deca Contact 1 breaker, 1 maker 250V for use with ADA16E Series
Sub-assembled, modular construction, illuminated or non illuminated, momentary and alternate action, round, square and rectangular Push Button Switches and matching Pilot Light Indicators to fit industry standard 16mm diameter cut-outs in panels with a thickness between 0.5 and 5mm. Available in a choice of raised bezel profile which prevents accidental touch or flush mounted versions that enable the Push Button Switch or Pilot Light Indicator to be mounted almost flush with any panel. Quick and easy to assemble, once fully constructed each Push Button Switch or Pilot Light Indicator has a waterproof panel sealing to IP65.
To make a complete illuminated push button switch you will need a push button operator + contact block + lens + filament lamp or LED.
For suitable contact block mating connectors see stock number 680-2158 typically.
For suitable lenses see stock numbers 745-2499, 745-2530 and 745-2512 typically.
For a suitable filament lamp see stock number 655-9211 typically.
For a suitable white single chip LED see stock number 225-997 typically.
Technical data
Connection Solder tag
Contact type 1 breaker , 1 maker
Switching voltage 250 V AC
Switching current (max.) 5 A
Min. temperature -25 °C
Max. temperature +55 °C
Content 1 pc(s)
RoHS-compliant Yes
Type ADA16-B
Product type Contact
Manufacturer:Deca Switchlab
Datasheet:YMD-12095-G 12V.pdf
