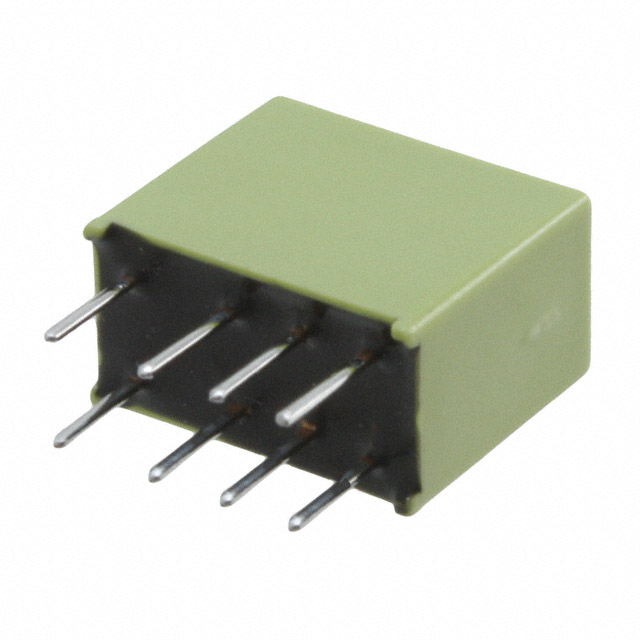

AGN20012 Panasonic Signal Relay 12VDC 1.028KOHM 1A DPDT

PANASONIC AGN20012 ELECTROMECHANICAL RELAY 12VDC 1.028KOHM 1A DPDT RoHS

SKU: AGN20012 Category: Tags: , , Brand:

Description

AGN20012 Panasonic Industrial Devices Low Signal Relay Signal Relay, AGN Series, Non Latching, DPDT, Through Hole, 1 A, 12 VDC RoHS Compliant: Yes

Coil Voltage: 12VDC
Contact Configuration: DPDT
Contact Current: 1A
Product Range: AGN
Relay Mounting: Through Hole
Coil Type: Non Latching
Relay Terminals: Solder
Contact Voltage VAC: –
Contact Voltage VDC: 30V
Contact Material: Silver Palladium
Coil Resistance: 1.028kohm

The AGN series from Panasonic Electric Works (formerly Aromat) is an ultra small, extremely compact Signal relay. This series has a Double Pole Double Throw contact arrangement. The AGN series is available in both tube and reel packaging (part numbers ending with X or Z). The AGN20012 is a Double Pole Double Throw (DPDT), ultra small Signal relay. With a 12 VDC nominal coil voltage and 140 mW operating power, the AGN20012 is rated to 1 amp and is single side stable. The AGN20012 is a through hole device

Manufacturer Part Number: AGN20012
