Description

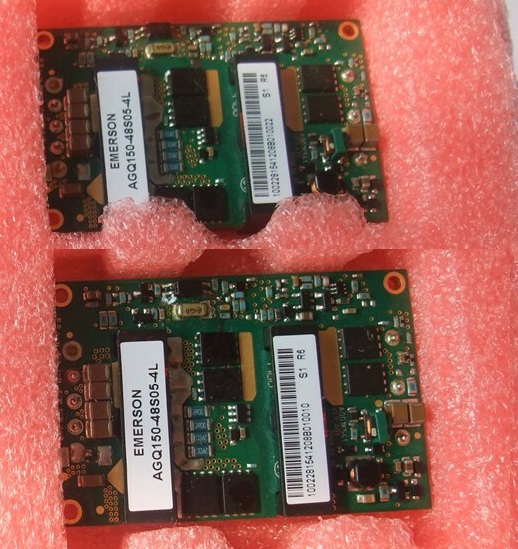

AGQ150-48S05-4L Emerson Isolated Module DC DC Converter 1 Output 5V 30A 36V – 75V Input
Specifications
Manufacturer: Artesyn Embedded Technologies
Product Category: Isolated DC/DC Converters
Number of Outputs: 1 Output
Output Power: 150 W
Input Voltage: 36 V to 75 V
Output Voltage-Channel 1: 5 V
Output Current-Channel 1: 30 A
Isolation Voltage: 2.25 kV
Mounting Style: Chassis Mount
Length: 2.8 in
Width: 1.45 in
Height: 0.5 in
Industry: Industrial
Product: Isolated
Series: NXI110
Operating Temperature Range: – 40 C to + 85 C
Package / Case Size: Full Brick
Brand: Artesyn Embedded Technologies
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: – 40 C
Product Type: Isolated DC-DC Converters
Factory Pack Quantity: 10
Subcategory: DC-DC Converter
Obsolete
The AGQ150 series quarter-brick isolated DC-DC converter is designed specifically to provide a regulated low noise 12 Vdc output for feeding downstream non-isolated point-of-load (POL) converters in systems with distributed power architectures (DPA). The converter has a wide 2:1 input range of 36 to 75 Vdc and is designed primarily for use with standard 48 V telecommunications equipment supplies. Rated at 150 watts, it can deliver up to 30 amps and accommodates a wide ambient operating temperature range of -40 to 85C.
The converter has a typical efficiency of 93% and is based on an open-frame design that is optimized for forced air or conduction cooling – an aluminum baseplate option is available for enhanced thermal performance. The conversion technology employs 310 kHz fixed frequency switching to help minimize external EMI filtering requirements.
Standard features include output trim, remote enable and differential remote sense, with non-latching overvoltage and overtemperature protection. The baseplate versions of AGQ150 series converters have an installed height of just 0.5 inch (12.7 mm), making them ideal for systems with demanding inter-board spacing requirements.
Features
Delivering up to 30A output current
Ultra-high efficiency 92.7% typ. at full load
Wide input range: 36V ~ 75V
Excellent thermal performance
No minimum load requirement
Fixed frequency operation
RoHS 6 compliant
Manufacturer:Electronic Components
Datasheet:AGQ150-48S05.pdf
