Description

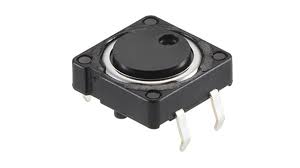

ALPS SKHCBFA010 (Switch Tactile N.O. SPST Flat Button PC Pins 0.05A 12VDC 1.27N Thru-Hole)
Part number SKHCBFA010
Type Snap-in
Operating force 1.27N
Operating direction Top push
Travel 0.3mm
Operating life
(5mA 5V DC) 1,000,000 cycles
Initial contact resistance 100mO max.
Stem color Black
Stem Flat stem
Series type Sharp feeling type
Operating temperature range -40? to +85?
Rating (max.) 50mA 12V DC
Rating (min.) 10µA 1V DC
Electrical performance Insulation resistance 100MO min. 100V DC for 1min.
Voltage proof 250V AC for 1 min.
Durability Vibration 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the 3 direction of X, Y and Z for 2 hours respectively
Environmental performance Cold -40±2? for 96h
Dry heat 90±2? for 96h
Damp heat 60±2?, 90 to 95%RH for 96h
Minimum order unit (pcs.) Japan 1,000
Export 1,000
Manufacturer:Alps
Datasheet:SKHCBFA010_RoHS.pdf
