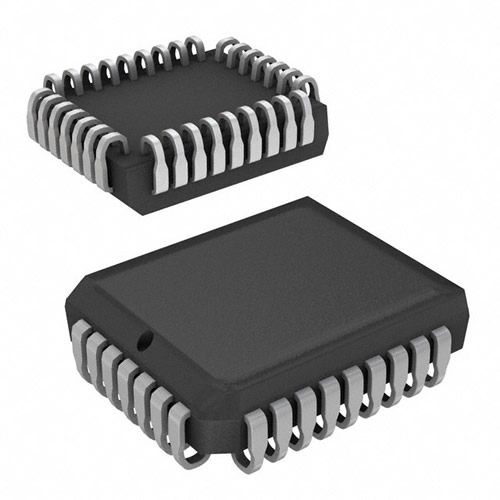

AMD AM28F020-90JC NOR Flash Parallel 5V 2M-bit 256K x 8 90ns 32-Pin PLCC
2 Megabit x 8-Bit) CMOS 12.0 Volt, Bulk Erase Flash Memory
s High performance Access times as fast ns s CMOS low power consumption 30 mA maximum active current 100 µA maximum standby current No data retention power consumption s Compatible with JEDEC-standard byte-wide 32-pin EPROM pinouts 32-pin PDIP 32-pin PLCC 32-pin TSOP s 10,000 write/erase cycles minimum s Write and erase voltage ±5% s Latch-up protected 100 mA from V to VCC V s Flasherase Electrical Bulk Chip Erase One second typical chip erase time s Flashrite Programming 10 µs typical byte program time 4 s typical chip program time s Command register architecture for microprocessor/microcontroller compatible write interface s On-chip address and data latches s Advanced CMOS flash memory technology Low cost single transistor memory cell s Automatic write/erase pulse stop timer
The a 2 Megabit Flash memory organized as 256 Kbytes of 8 bits each. AMD’s Flash memories offer the most cost-effective and reliable read/ write non-volatile random access memor y. The Am28F020 is packaged in 32-pin PDIP, PLCC, and TSOP versions. It is designed to be reprogrammed and erased in-system or in standard EPROM programmers. i s eras ed w hen h ip ped from the factory. The standard Am28F020 offers access times of as fast as 70 ns, allowing high speed microprocessors to operate without wait states. To eliminate bus contention, the device has separate chip enable (CE#) and output enable (OE#) controls. AMD’s Flash memories augment EPROM functionality with in-circuit electrical erasure and programming. The Am28F020 uses a command register to manage this functionality, while maintaining a JEDEC-standard 32pin pinout. The command register allows for 100% TTL level control inputs and fixed power supply levels during erase and programming, while maintaining maximum EPROM compatibility. AMD’s Flash technology reliably stores memory contents even after 10,000 erase and program cycles. The AMD cell is designed to optimize the erase and programming mechanisms. In addition, the combination of advanced tunnel oxide processing and low internal electric fields for erase and programming operations produces reliable cycling. The Am28F020 uses a 12.0±5% VPP supply input to perform the Flasherase and Flashrite functions. The highest degree of latch-up protection is achieved with AMD’s proprietary non-epi process. Latch-up protection is provided for stresses mA on address and data pins from V to VCC +1 V. The Am28F020 is byte programmable using 10 µs programming pulses in accordance with AMD’s Flashrite programming algorithm. The typical room temperature programming time of the Am28F020 is four seconds. The entire chip is bulk erased using 10 ms erase pulses according to AMD’s Flasherase algorithm. Typical erasure at room temperature is accomplished in less than one second. The windowed package and the 1520 minutes required for EPROM erasure using ultraviolet light are eliminated. Commands are written to the command register using standard microprocessor write timings. Register contents serve as input to an internal state-machine, which controls the erase and programming circuitry. During write cycles, the command register internally latches
addresses and data needed for the programming and erase operations. For system design simplification, the Am28F020 is designed to support either WE# or CE# controlled w rites. During a system write cycle, addresses are latched on the falling edge of WE# or CE#, whichever occurs last. Data is latched on the rising edge of WE# or CE#, whichever occurs first. To simplify discussion, the WE# pin is used as the write cycle
control pin throughout the rest of this data sheet. All setup and hold times are with respect to the WE# signal. AMD’s Flash technology combines years of EPROM and EEPROM experience to produce the highest levels of quality, reliability, and cost effectiveness. The Am28F020 electrically erases all bits simultaneously using Fowler-Nordheim tunneling. The bytes are programmed one byte at a time using the EPROM programming mechanism of hot electron injection.
To Array WE# State Control Command Register CE# OE# Program Voltage Switch
Chip Enable Output Enable Logic Data Latch
Program/Erase Pulse Timer Y-Decoder Address Latch Y-Gating
Manufacturer Part Number: AM28F020-90JC
AMD
