Description

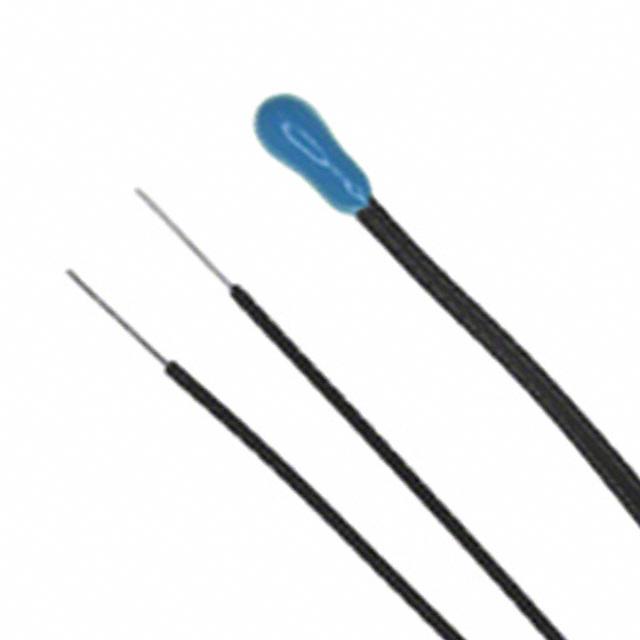

NTC Thermistors -Probe Assembly with Epoxy
Temperature sensing, compensation and control with Ametherm NTC Thermistors
Ametherm NTC thermistors are manufactured from a specially-formulated metal oxide ceramic material that is extremely accurate in sensing temperature. Same high quality material is used in wide variety of housings and leaded parts for various applications such as:
- Temperature Sensing
- Temperature Detection
- Transformers
- Electric Motors
- Air Sensors
- HVAC
| Part Number | R @ 25c | Beta (K) | R/T curve | Dissipation | Thermal Time | Max Power |
| Contstant | Constant | |||||
| PANE501350 | 500 | 3,500 | M | 3 | 10 | 125 |
| PANE102350 | 1k | 3,500 | M | 3 | 10 | 125 |
| PANE202395 | 2k | 3,950 | L | 3 | 10 | 125 |
| PANE302395 | 3k | 3,950 | L | 3 | 10 | 125 |
| PANE502395 | 5k | 3,950 | L | 3 | 10 | 125 |
| PANE103395 | 10k | 3,950 | L | 3 | 10 | 125 |
| PANE253411 | 25k | 4,111 | R | 3 | 10 | 125 |
| PANE503411 | 50k | 4,111 | R | 3 | 10 | 125 |
| PANE104450 | 100k | 4,500 | S | 3 | 10 | 125 |
| PANE254450 | 250k | 4,500 | S | 3 | 10 | 125 |
Thermistors are thermally sensitive resistors whose prime function is to exhibit a large, predictable and precise change in electrical resistance when subjected to a corresponding change in body temperature. Negative Temperature Coefficient (NTC) thermistors exhibit a decrease in electrical resistance when subjected to an increase in body temperature and Positive Temperature Coefficient (PTC) thermistors exhibit an increase in electrical resistance when subjected to an increase in body temperature. U.S. Sensor produces thermistors capable of operating over the temperature range of -100° to over +600° Fahrenheit. Because of their very predictable characteristics and their excellent long term stability, thermistors are generally accepted to be the most advantageous sensor for many applications including temperature measurement and control.
Manufacturer:Ametherm
Datasheet:Ametherm/PANT-103395-401-rev1.pdf
