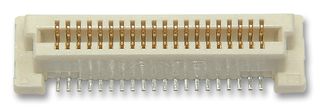

AMP/TYCO 5-5179009-3 Board to Board Connector 2X40Position
AMP/TYCO 5-5179009-3 Board to Board Connector 2X40Position - Image 2

AMP/TYCO 5-5179009-3 Board to Board Connector 2X40Position

5-5179009-3 AMP/TYCO Board-to-Board Headers & Receptacles 80P Position 0.8mm FH PCB Mount

ENQUIRY!
SKU: 5-5179009-3 Category: Tags: , , Brand:

Description

TE CONNECTIVITY / AMP 5-5179009-3 PCB Mount Receptacle, Vertical, Board-to-Board, 80 Position Connector, FH Series, Solder, Receptacle, 0.8 mm, Gold Plated Contacts

The 5-5179009-3 is a 80-way 2-row 0.8mm Free Height Vertical Receptacle with gold-plated beryllium copper contacts and surface mount termination. This FH series connector comes with natural LCP housing and tin over nickel plated solder tail, designed for parallel board stacking applications using sub miniature connectors to meet today’s electronic industry requirements for high density packaging. The receptacles are preloaded with the unique bellows-type spring contacts for reliable electrical connection with the plugs.
  • Positioning bosses for proper on-board orientation
  • Bellows type spring contacts are resistant to scooping and stubbing during mating and unmating
  • UL94V-0 Flammability rating
  • 0.5A Contact current rating
  • 30mR Contact resistance
  • 100VAC Voltage rating
  • -40 to 85°C Operating temperature range

Applications

Industrial

Manufacturer: TE Connectivity
Product Category: Board to Board & Mezzanine Connectors
RoHS: RoHS Compliant Details
Brand: TE Connectivity / AMP
Product: Receptacles
Number of Positions: 80 Position
Pitch: 0.8 mm
Number of Rows: 2 Row
Termination Style: SMD
Mounting Angle: Vertical
Current Rating: 500 mA
Voltage Rating: 100 V
Series: 1 mm Free Height
Packaging: Tube
Contact Material: Beryllium Copper
Contact Plating: Gold
Housing Material: Thermoplastic
Stack Height: 9 mm to 12 mm
Manufacturer Part Number: 5-5179009-3
TE Connectivity / AMP
