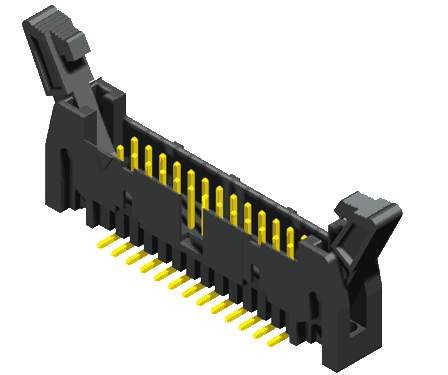

Amtek EDH1S-50GB3-L Connector

Description

Amtek Connector Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole

Contact Type Male Pin
Connector Type Header, Shrouded
Number of Positions 50
Number of Positions Loaded All
Pitch 0.100″ (2.54mm)
Number of Rows 2
Row Spacing 0.100″ (2.54mm)
Contact Mating Length 0.240″ (6.10mm)
Mounting Type Through Hole
Termination Solder
Fastening Type –
Features –
Contact Finish Gold or Gold-Palladium
Contact Finish Thickness 30µin (0.76µm)
