Description

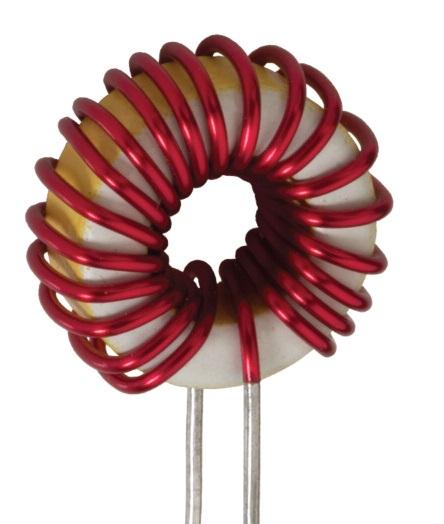

PT10-530 Inductor High Current 10uH 15% .02ohm VrtMnt Toroid Radial RoHS
SPECIFICATIONS
Part #: PT10-530R
Part Category: Inductors
Manufacturer: API Delevan, Inc.
Description: 1 ELEMENT, 10uH, POWDERED IRON-CORE, GENERAL PURPOSE INDUCTOR
Mfr Package Description RADIAL LEADED, ROHS COMPLIANT
REACH Compliant Yes
EU RoHS Compliant Yes
Inductor Type GENERAL PURPOSE INDUCTOR
Core Material IRON
DC Resistance 0.0200 ohm
Inductance-Nom (L) 10 µH
Inductor Application POWER INDUCTOR
JESD-609 Code e2
Type Toroidal
Material – Core Powdered Iron
Inductance 10µH
Tolerance ±15%
Current Rating 4.9A
Current – Saturation –
Shielding Shielded
DC Resistance (DCR) 20 mOhm Max
Frequency – Test 1kHz
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.530″ Dia (13.46mm)
Height – Seated (Max) 0.230″ (5.84mm)
Manufacturer:API Delevan
Datasheet:Others/APINS00739-1.pdf
