Description

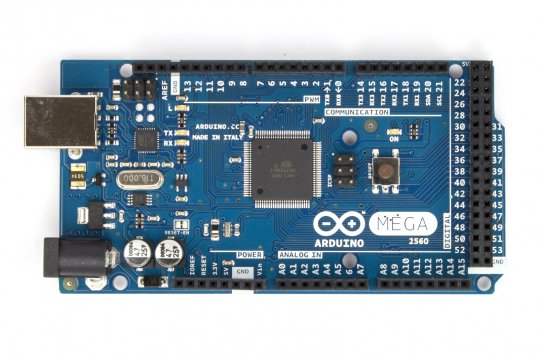

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Uno, Duemilanove or Diecimila.
The Mega 2560 is an update to the Arduino Mega, which it replaces.
Additional features coming with the R3 version are:
- ATmega16U2 instead 8U2 as USB-to-Serial converter
- 1.0 pinout: added SDA and SCL pins for TWI communication placed near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board and the second one is a not connected pin, that is reserved for future purposes
- stronger RESET circuit
-
Microcontroller ATmega2560 Operating Voltage 5V Input Voltage (recommended) 7-12V Input Voltage (limit) 6-20V Digital I/O Pins 54 PWM Digital I/O Pins 14 Analog Input Pins 16 DC Current per I/O Pin 40 mA DC Current for 3.3V Pin 50 mA Flash Memory 256 KB Flash Memory for Bootloader 8 KB SRAM 8 KB EEPROM 4 KB Clock Speed 16 MHz Lenght 101.52 mm Width 53.3 mm Weight 37 g
Manufacturer Part Number: A000067
