Description

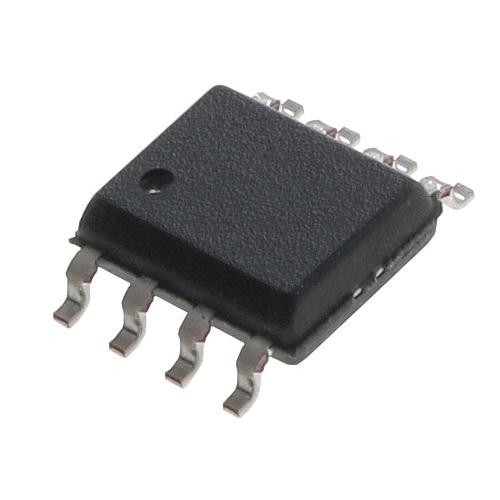

AT24C64D-SSHM-T Microchip SERIAL EEPROM, 64KBIT, 1MHZ, SOIC-8, IC Interface Type:I2C, Memory Size:64Kbit, EEPROM Memory Configuration:8K x 8bit, Clock Frequency:1MHz, Memory Case Style:SOIC, No. of Pins:8Pins, Supply Voltage Min:1.7V, Supply Voltage Max:5.5V, , RoHS
Specifications
Product Category: EEPROM
Manufacturer: Microchip
RoHS: RoHS Compliant
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Memory Size: 64 kbit
Organization: 8 k x 8
Interface Type: Serial, 2-Wire, I2C
Access Time: 550 ns
Data Retention: 100 Year
Maximum Clock Frequency: 1 MHz
Supply Current – Max: 1 mA
Operating Supply Voltage: 1.7 V to 5.5 V
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Series: AT24C64D
Packaging: Reel
Packaging: Cut Tape
Brand: Microchip Technology / Atmel
Height: 1.48 mm (Max)
Length: 4.98 mm (Max)
Operating Supply Current: 2 mA
Factory Pack Quantity: 4000
Supply Voltage – Max: 5.5 V
Supply Voltage – Min: 1.7 V
Width: 3.99 mm (Max)
Unit Weight: 0.019048 oz
Manufacturer Part Number: AT24C64D-SSHM-T
Microchip Technology
