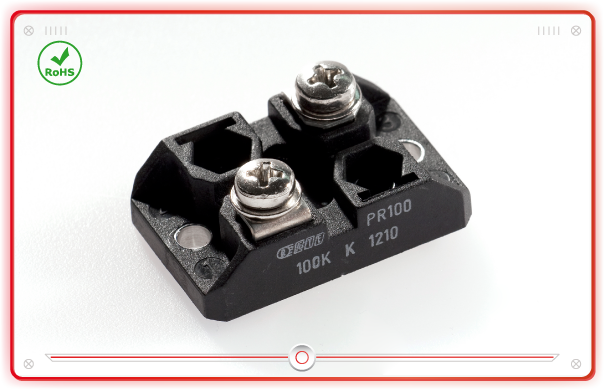

ATE ELECTRONICS PR102 2X100R 10% RESISTOR 100OHM 10% ROHS
PR100 Series / Thick film power resistors
Features
Very good ratio Power / Volume.
Easy mounting and wiring with significant cost advantages.
Non inductive performance for high frequency applications.
One model for power up to 150W.
Suited to UL94-V0 application.
SOT227 configuration.
Technical Specifications
– Power rating
100W (PR102 2 x 50W)
– Max power not trimmed
150W (heatsink at 70°C)
– Resistance range
From 1R0 to 1MOhm, E12 series
– Tolerance
Standard 10%, up to 1% on request
– Temperature coefficient
±100 ppm/°C
– Max Work Voltage
1500 Vac
– Work Temperature Range
From -55°C to +155°C
– Dielectric Strength
2500 Vac
– Insulation resistance
> 105 MOhm at 500V
– Partial discharge
< 80 pC @ 2000 Vac (on request)
– Self inductance
40 nH
– Capacitance to heatsink
< 30 pF
– Overload
2 Pn x 10 s
– Thermal resistance
0.5 °C/W
– Heatsink flatness
0.05 mm Max
– Heatsink surface finish
6.3µm Max
– Thermal grease
Required
– Max torque for contact
1.2 Nm (static)
– Max torque for mounting
1.5 Nm (static)
– Weight
18 g (PR100 / PR101)
24 g (PR102 / PR103)
Manufacturer Part Number: PR102-2X100R-10%
