Description

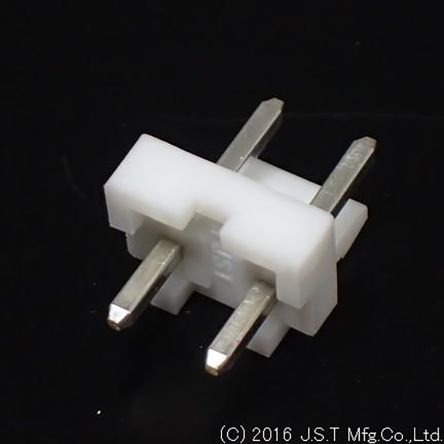

B02P-NV(LF)(SN) JST Connector 2 Position 5 mm Pitch Through Hole Locking Header RoHS
The B02P-NV(LF)(SN) is a NV Series 2 Position 5 mm Pitch Through Hole Locking Header. It has an temperature range of -25 °C to +85 °C.
This 5.00 mm (0.197″) oitch crimp style connector has been developed based on the box-shaped leaf contacts used successfully in the VH connector. The connector is suitable for a wide range of applications, from low-voltage, low-current signal circuits to power supply circuits requiring large currents.
Features:
Side stackable
Connectors can be stacked side by side without causing pitch loss, and thus the number of circuits can easily be changed even after the design is finalized
Box Contacts
Compact connector with a large capacity
Secure contact and mounting
Current rating: 10 A AC,DC (AWG #16)
Voltage rating: 250V AC, DC
Insulation resistance: 1000 M Ω min
Manufacturer Part Number: B02P-NV(LF)(SN)
JST
