Description

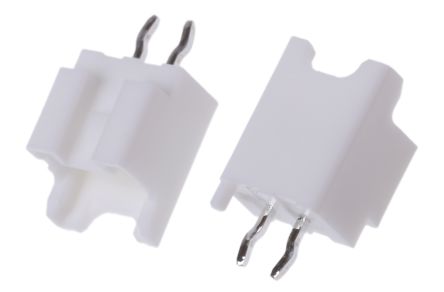

B03B-PASK-1(LF)(SN) JST Header PA Series 3 Position 2mm Pitch Top Entry with Boss Through Hole Shrouded Header
Style Board to Cable/Wire
Shrouding Shrouded – 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length – Mating 0.126″ (3.20mm)
Contact Length – Post 0.118″ (3.00mm)
Overall Contact Length 0.319″ (8.10mm)
Insulation Height 0.303″ (7.70mm)
Contact Shape Square
Contact Finish – Mating Tin
Contact Finish – Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide
Operating Temperature -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 9.9mm, 14.7mm, 14.9mm
Manufacturer Part Number: B03B-PASK-1(LF)(SN)
JST
