Description

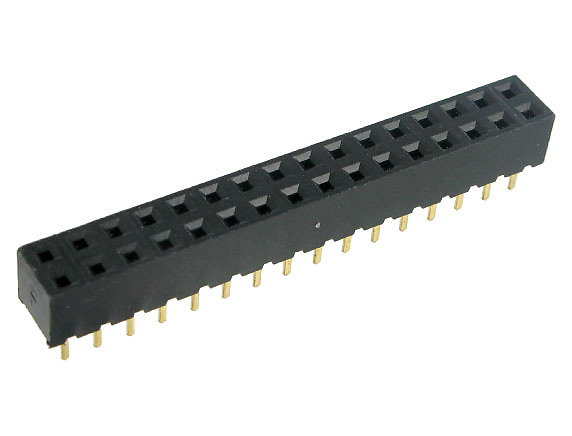

B26-2×14-BG1-G Toby Electronics Connector SOCKET PCB MOUNT DUAL 2.54mm x 7mm
2.54mm Pitch SIL & DIL 7mm Profile PCB Sockets 2×14 Positions
RoHS Compliant
Dual and Single Row Straight PCB Mount
7mm PCB Profile
Sizes from 1 to 40 positions per row
3 Amps per contact when mated with pin header
Mates with Custom Toby Pin headers FTHD-xxR Series (2.54mm Pitch DIL Flexible Pin Headers) & FTHS-xxR Series (2.54mm Pitch SIL Flexible Pin Headers)
Mates with Toby standard Pin headers THD-xx-R (2.54mm Pitch Dual Row Straight PCB Mount Pin Headers) & THS-xx-R (RoHS Type) (2.54mm Pitch Single Row VALCON Pin Headers)
Manufacturer:Electronic Components
Datasheet:Others/toby.pdf
