Description

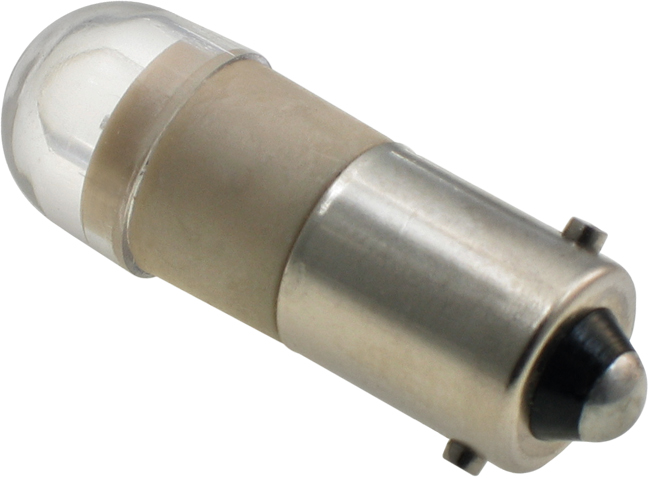

B320-XIW-6/48V LEDtronics LED 6Vdc-48Vdc,W.White,Ba9s
Attributes:
Connection 9mm Single Contact Bayonet
Color
Warm White
Color Temp
3000K
Cntr Cont Plrty BipolarDC (+/-)
Voltage 6 to 48Vdc
Power 0.44W
Current 0.009A
Operating Temp
?p, nm —
Max Candela 3.00cd
Viewing Angle 40°
RoHS
ISO
Features
3 Year LEDtronics Limited Warranty
Direct Drop-in Replacement for Incandescent
Low Power Consumption, High Intensity
Sunlight Visible
Solid-State, High Shock and Vibration Resistant
Long Life:Lumen Maintenance of the White LEDs Is Greater than 70% at 35,000 Hours of Operation.
(Rated Average Life Based on Engineering Testing and Probability Analysis)
Colored LEDs Will Last Up to 100,000 Hours
Warm White Works Behind All Color Lenses
Bipolar. Center Contact Positive or Negative
30+ Years LEDtronics Design & Manufacturing
Applications
Replaces Incandescent: • (5/6V) 6MB, 44, 47, 755; • (12/14V) 12MB, 756; • (24V) 24MB, 313, 757, 1819, 1829; • (48V) 48MB
Indicator lights for instrumentation
Panel-mount pilot lights
Available Options
Other Voltages Availabe
Other Colors Availabe
Other Intensities or Bean Angles Availabe
Caution
Use for Input Voltage range 6Vdc to 48Vdc only
Use behind all color or White Diffusers
Manufacturer:Ledtronics
Datasheet:Ledtronics/B320-6-48V-DC.pdf
