Description

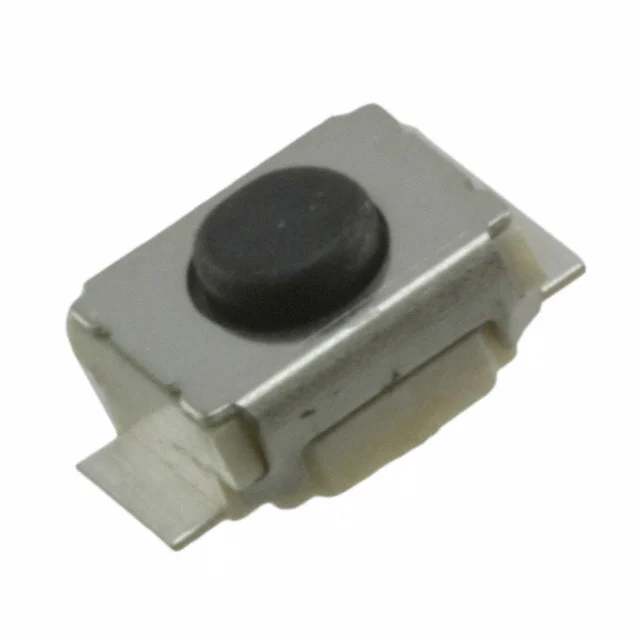

B3U-1000P Omron Electronics Tactile Switches Top Actuated w/o boss w/o ground SPST-NO 0.05A 12V RoHS
The B3U series from Omron are ultra small sized surface mount tactile switches with high contact reliability. These compact switches allow high density mounting on PCBs for mobile equipment.
- SPST-NO contact configuration
- Switching capacity of 1 to 50mA at 5VDC to 12VDC
- Maximum contact resistance of 100mohm
- Minimum insulation resistance of 100Mohm
- Top and side actuators
- Operating force of 153gf (B3U-1000 Series) and 162gf (B3U-3000 Series)
- Dust proof construction provides high reliability in dusty environments
- Models with ground terminals are available for protection against static electricity
- 1.2mm x 3mm x 2.5mm size
Applications
Industrial, Power Management, Automation & Process Control
Manufacturer Part Number: B3U-1000P
Omron Electronics
