Description

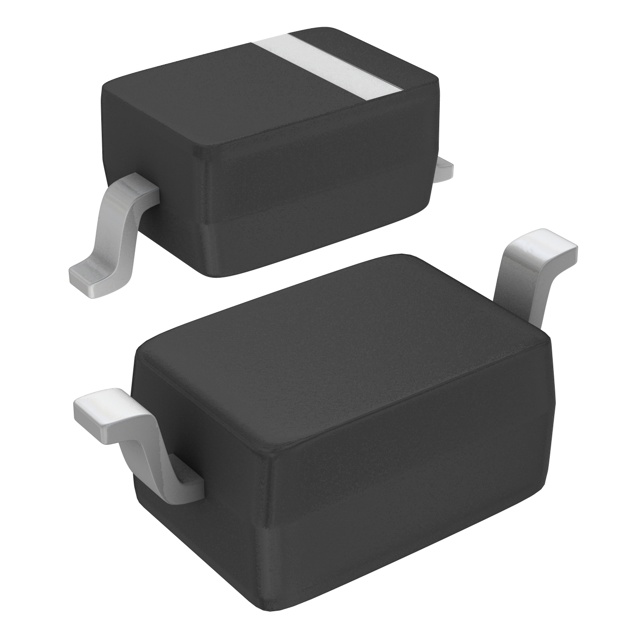

BAT60JFILM STMicroelectronics 3A, 10V SOD-323, Diode Configuration:Single, Repetitive Reverse Voltage Vrrm Max:10V, Forward Current If(AV):3A, Forward Voltage VF Max:580mV, Forward Surge Current Ifsm Max:5A, Operating Temperature Max:150 C , RoHS
Specifications
Product Category: Schottky Diodes & Rectifiers
Manufacturer: STMicroelectronics
RoHS: RoHS Compliant
Product: Schottky Diodes
Mounting Style: SMD/SMT
Package / Case: SOD-323
If – Forward Current: 3 A
Vrrm – Repetitive Reverse Voltage: 10 V
Vf – Forward Voltage: 0.58 V
Ifsm – Forward Surge Current: 5 A
Configuration: Single
Technology: Si
Ir – Reverse Current: 7.5 uA
Minimum Operating Temperature: – 65 C
Maximum Operating Temperature: + 150 C
Series: BAT60
Packaging: Reel
Brand: STMicroelectronics
Height: 1.07 mm (Max)
Length: 1.8 mm (Max)
Operating Temperature Range: + 150 C
Factory Pack Quantity: 3000
Termination Style: SMD/SMT
Type: Small Signal Schottky Diode
Width: 1.45 mm (Max)
Unit Weight: 0.001164 oz
Manufacturer Part Number: BAT60JFILM
