Description

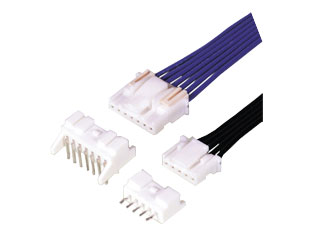

BM09B-PASS-TFT(LF)(SN) JST Connector 9 Position Single Row 2 mm SMT Shrouded Header Wire to Board RoHS
Product Attributes
Categories:Connectors, Interconnects
Rectangular Connectors – Headers, Male Pins
Manufacturer:JST Sales America Inc.
Series:PA
Packaging:Tape & Reel (TR)
Connector Type:Header
Contact Type:Male Pin
Pitch – Mating:0.079″ (2.00mm)
Number of Positions:9
Number of Rows:1
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded – 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Locking Ramp
Insulation Height:0.350″ (8.89mm)
Contact Shape:Square
Contact Finish – Mating:Tin
Contact Finish – Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon
Features:Pick and Place, Solder Retention
Operating Temperature:-25C to 85C
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):3A
Voltage Rating:250V
Mated Stacking Heights:11.1mm, 16mm, 16.2mm
Manufacturer: JST
MFG Part #: BM09B-PASS-TFT(LF)SN
