Description
Product Attributes
Categories Connectors, Interconnects
Rectangular Connectors – Headers, Male Pins
Manufacturer JST Sales America Inc.
Series ZPD
Packaging Tape & Reel (TR)
Connector Type Header
Contact Type Outer Shroud Contact
Pitch – Mating 0.059″ (1.50mm)
Number of Positions 26
Number of Rows 2
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded – 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.219″ (5.56mm)
Contact Shape Rectangular
Contact Finish – Mating Tin
Contact Finish – Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Operating Temperature -25C ~ 85C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V

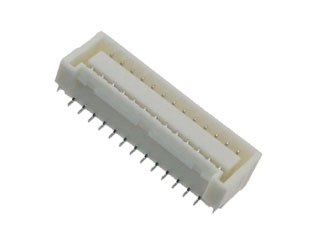

Mated Stacking Heights 9.5mmBM26B-ZPDSS-TF(LF)(SN) JST Shrouded Header Connector 26 Position 2Row
Manufacturer:JST
Datasheet:JST/PUD.pdf
