Description

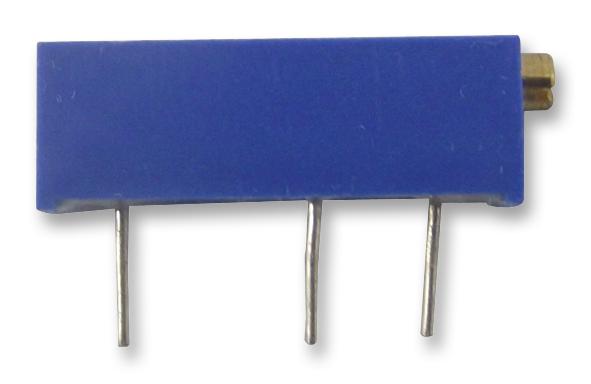

3006P-1-502LF Bourns Res Cermet Trimmer 5K Ohm 10% 0.75W(3/4W) 15(Elec)Turn 2.36mm (20.57 X 4.83 X 6.35mm) Pin Thru-Hole ROHS
The 3006P-1-502LF is a 3600-series Trimpot® Trimming Potentiometer with 3/4-inch rectangular/multiturn/cermet/industrial/sealed and low PC profile. Transparent housing available, can be set visually without hook-up and instrumentation (P style only). Power rating of 0.75W and temperature coefficient of ±100ppm/°C.
1000MR Insulation resistance
1000V Dielectric withstanding voltage
UL94V-0 Flammability
Solderable pins
Adjustment angle 15 turns
±10% tolerance
Temperature coefficient is ±100ppm/°C
Operating temperature ranges from -55°C to +125°C
Power rating is 0.75W
Low PC board profile of 1/4 ” high
Applications
Industrial; Consumer Electronics; Portable Devices; Power Management
Manufacturer:Bourns
Datasheet:Bourns/3299.pdf
