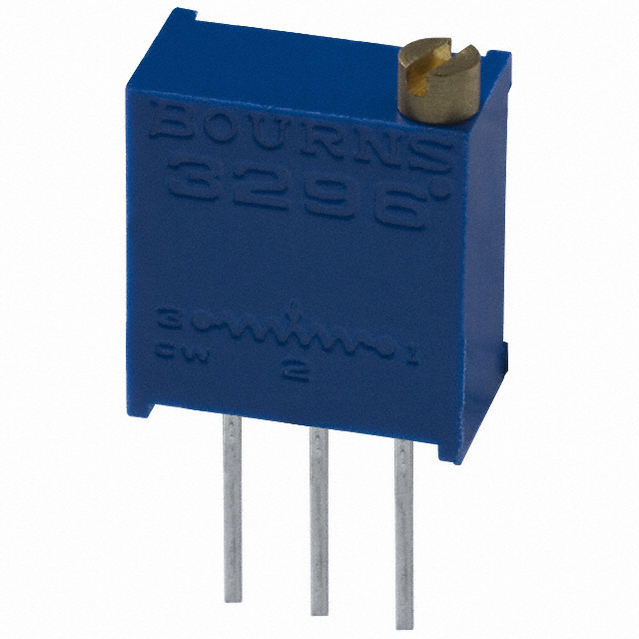

BOURNS 3296W-1-102 Resistor Trimmer 1Kohms Sealed 3/8" SQ PC Pins
BOURNS 3296W-1-102 Resistor Trimmer 1Kohms Sealed 3/8" SQ PC Pins - Image 2
  1. BOURNS 3296W-1-102 Resistor Trimmer 1Kohms Sealed 3/8" SQ PC Pins
  2. BOURNS 3296W-1-102 Resistor Trimmer 1Kohms Sealed 3/8" SQ PC Pins - Image 2

BOURNS 3296W-1-102 Resistor Trimmer 1Kohms Sealed 3/8″ SQ PC Pins

Bourns – Potentiometers, Variable Resistors 3296W-1-102 Pot 1. 0K Ohm 3/8″ Sq Cerm Resistor

ENQUIRY!
SKU: 3296w-1-102 Categories: , , Tags: , , , Brand:

Description

BOURNS 3296W-1-102 Trimpot Trimmer Resistors Potentiometers, 1 kOhms 0.5W, 1/2W 25TURN PC Pins Through Hole Trimmer Potentiometer Cermet 25 Turn Top Adjustment

Product Overview

The Trimpot 3296 series from Bourns are cermet, through hole trimming potentiometers. These potentiometers are multiturn which performs a variety of circuit adjustments in all types of electronic equipment. Typical applications are measuring linear distance, angle or rotation in production equipments.
  • 3/8inch square potentiometer
  • Side or top adjustment with lead screw
  • Sealing is IP65 rated
  • 25 turns and rotational life of 200 cycles
  • Resistance value ranges from 10 ohm to 2Mohm
  • ±10% tolerance
  • Temperature coefficient is ±100ppm/°C
  • Operating temperature ranges from -55°C to +125°C
  • Power rating is 0.5W
  • 5 terminal styles, chevron seal design

Applications

Industrial; Consumer Electronics; Portable Devices; Power Management

Specifications
Manufacturer: Bourns
Product Category: Trimmer Resistors – Through Hole
RoHS: N
Series: 3296
Termination Style: PC Pin
Product: Multiturn
Number of Turns: 25
Resistance: 1 kOhms
Adjustment: Top Slot
Power Rating: 500 mW (1/2 W)
Tolerance: 10 %
Temperature Coefficient: 100 PPM / C
Orientation: Vertical Adjustment
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 150 C
Packaging: Tube
Height: 10.03 mm
Length: 9.53 mm
Type: 0.375 in Square Trimpot Trimmer Resistor
Width: 4.83 mm
Brand: Bourns
Mounting Style: PCB Mount
Element Type: Cermet
Product Type: Trimmer Resistors
Factory Pack Quantity: 100
Subcategory: Potentiometers, Trimmers & Rheostats
Tradename: Trimpot
Unit Weight: 0.030000 oz
Manufacturer Part Number: 3296w-1-102
