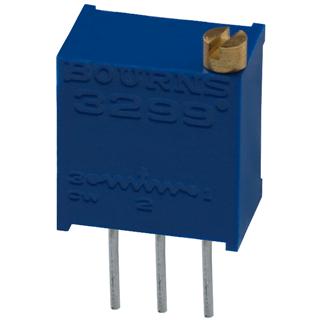

BOURNS 3299W-1-201 Resistor Network 200 OHM 3/8″ Square Ceramic

3299W-1-201 Bourns Cermet Potentiometer; Resistance Max:200ohm; Resistance Min:2ohm; Resistance Tolerance:+/- 10 %; Power Rating:0.5W; Voltage Rating:500V; Series:3299; Temperature Coefficient:+/-100 ppm; Adjustment Type:Trimmer

ENQUIRY!
SKU: 3299W1201 Categories: , , Tags: , , , Brand:

Description

3299W-1-201 Bourns Trimmer Resistors – Through Hole 200 OHMS Standoffs Vertical Adjust 3/8″

Cermet Potentiometer; Resistance Max:200ohm; Resistance Min:2ohm; Resistance Tolerance:+/- 10 %; Power Rating:0.5W; Voltage Rating:500V; Series:3299; Temperature Coefficient:+/-100 ppm; Adjustment Type:Trimmer

The Bourns Trimpot 3299 series are cermet, through hole trimming potentiometers. These potentiometers are multi-turn which performs a variety of circuit adjustments in all types of electronic equipment. Typical applications are measuring linear distance, angle or rotation in production equipments.
  • 3/8inch square potentiometer
  • Side or top adjustment with lead screw
  • Sealing is IP65 rated
  • 25 turns and rotational life of 200 cycles
  • Resistance value ranges from 10 ohm to 2Mohm
  • ±10% tolerance
  • Temperature coefficient is ±100ppm/°C
  • Operating temperature ranges from -55°C to +125°C
  • Power rating is 0.5W
  • 5 popular terminal styles, standoffs allow thorough PC board washing

Applications

Industrial; Consumer Electronics; Portable Devices; Power Management

Specifications
Manufacturer: Bourns
Product Category: Trimmer Resistors – Through Hole
RoHS: No
Product: Multiturn Resistor
Resistance: 200 Ohms
Brand: Bourns
Adjustment: Top Crossed
Power Rating: 500 mW (1/2 W)
Termination Style: Pin
Tolerance: 10 %
Element Type: Cermet
Length: 10.03 mm
Mounting: Panel Mount
Operating Temperature Range: – 55 C to + 125 C
Packaging: Tube
Product Type: Square Trimming Potentiometer
Qualification: Commercial
Series: 3299
Factory Pack Quantity: 100
Taper: Linear
Tradename: Trimpot
Type: Trimmers
Width: 9.53 mm
Unit Weight: 0.035000 oz
Manufacturer Part Number: 3299W1201
