Description

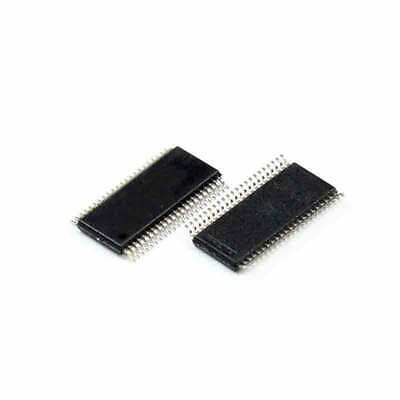

BQ20Z95DBTR Texas Instruments Battery Multi-Function Controller IC Lithium Ion/Polymer 0V to 25V 44-TSSOP RoHS
The bq20z95 SBS-compliant gas gauge and protection IC is a single IC solutiondesigned for battery-pack or in-system installation. The bq20z95 measures andmaintains an accurate record of available charge in Li-Ion or Li-Polymerbatteries using its integrated high-performance analog peripherals, monitorscapacity change, battery impedance, open-circuit voltage, and other criticalparameters of the battery pack as well and reports the information to the systemhost controller over a serial-communication bus. Together with the integratedanalog front-end (AFE) short-circuit and overload protection, the bq20z95maximizes functionality and safety while minimizing external component count,cost, and size in smart battery circuits.
Specifications
Manufacturer: Texas Instruments
Product Category: Battery Management
Product: Fuel Gauges
Battery Type: Li-Ion, Li-Polymer
Output Voltage: 0 V to 25 V
Output Current: 100 mA
Operating Supply Voltage: 4.5 V to 25 V
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Package / Case: TSSOP-44
Packaging: Reel
Capacity: 800 mAh to 15000 mAh
Height: 1.15 mm
Length: 11 mm
Series: BQ20Z95
Type: Gas Gauge, Protection
Width: 4.4 mm
Brand: Texas Instruments
Mounting Style: SMD/SMT
Development Kit: BQ20Z95EVM-001
Moisture Sensitive: Yes
Product Type: Battery Management
Factory Pack Quantity: 2000
Subcategory: PMIC – Power Management ICs
Unit Weight: 0.004914 oz
Manufacturer Part Number: BQ20Z95DBTR
