Description

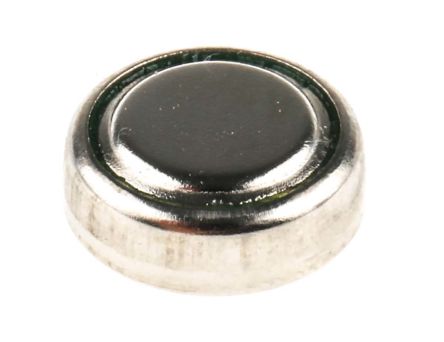

Panasonic BR1225A/FA Battery,Non-Rechargeable,Coin/Button,Lithium,3 VDC,48mAh,Thru-Hole,BR Series
, COIN CELL, 3V, 48MAH, Battery Technology:Lithium, Battery Capacity:48mAh, Battery Voltage:3V, Battery Size Code:Coin Cell, Battery Terminals:PCB Pins, External Diameter:12.5mm, External Height:2.5mm, RoHS
Product Specifications
Product Attribute Attribute ValueSearch
Alternate Mfr Part Number LITH-2A/FA
Capacity 48 mAh
Chemical System Lithium
Dimensions 2.5mm H x 12.5mm Dia.
Operating Temperature -40 to 125 C
Primary Type Non-Rechargeable
Product Header BR Series Coin Type Lithium Battery
Series BR Series
Size Coin/Button
Tab Type Coin/Button Batteries
Termination PCB Thru-Hole
Voltage Rating 3 V
Weight 0.8 g
Overview
LITHIUM – Coin Type Coin type lithium batteries are high energy, high reliability batteries for a variety of applications. The full 3 volts in these high energy density batteries is about twice that of conventional dry batteries. Panasonic coin type lithium batteries are available in two types: poly-carbonmonofluoride lithium batteries (BR series) for uses that require extended reliability and safety, and manganese dioxide lithium batteries (CR series) for uses that require high voltage and strong load pulse characteristics.
Features
High Voltage of 3 Volts — Twice That of Conventional Dry Batteries
Extremely Small Self-Discharge for Long Service and Shelf Life
Manufacturer Part Number: BR1225A/FA
Panasonic
