Description

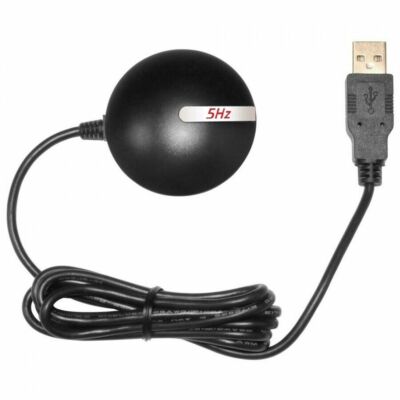

The BU-353-S4 is a USB magnet mount GPS receiver that features a highly sensitive, low power consumption chipset in a ultra compact form factor compatible with Microsoft Windows 10, 8, as well as 7, Vista & XP. The BU-353-S4 is powered by a SiRF Star IV GPS chipset, and will provide you with superior performance in urban canyons, and in dense foliage. With the SiRF CGEE (Client Generated Extended Ephemeris) technology, has the capability of predicting satellite positions for up to 3 days in advance, and will deliver a CGEE-start time of less than 15 seconds under most conditions without any network assistance. The BU-353-S4’s MicroPower mode allows the receiver to stay in a hot start-like condition almost continuously while consuming very little power.
Built-In GPS Patch Antenna
Built-In Roof Mount Magnet
48-Channel All-In-View Tracking
SiRF Star IV GPS Chipset
WAAS/ EGNOS Support
The BU-353-S4 is suitable for the following applications:
Automotive navigation.
Personal positioning.
Fleet management.
| ND-105C USB GPS Receiver | BR-355-S4 Serial GPS Receiver | MR-350P-S4 Serial GPS Receiver | BU-353-S4-5Hz GPS Receiver | Serial MR-350P-S4-5Hz GPS Receiver | BR-355-S4-5Hz Serial GPS Receiver | |
|---|---|---|---|---|---|---|
| Default NMEA Sentence | GGA, GSA, GSV, RMC | GGA, GSA, GSV, RMC | GGA, GSA, GSV, RMC | GGA, GSA, GSV, RMC | GGA, GSA, GSV, RMC | GGA, GSA, GSV, RMC |
| Connector/Interface | Connector Micro USB | Serial | Serial | USB | Serial | Serial |
| Output rate | 1Hz | 1Hz | 1Hz | 5Hz | 5Hz | 5Hz |
| WAAS/ EGNOS enabled | ? | ? | ? | ? | ? | ? |
| Protocol, Default Baud Rate | NMEA, 4800 | NMEA, 4800 | NMEA, 4800 | NMEA, 4800 | NMEA, 4800 | NMEA, 4800 |
| Compatible with Window 10 | ? | ? | ? | ? | ? | ? |
| WaterProof Standard | N/A | IPX 6 | IPX 7 | IPX 6 | IPX 7 | IPX 6 |
| Cable Length | N/A | 60″( 1.5M) | 180″ (4.5M) | 180″ (4.5M) | 180″ (4.5M) | 180″ (4.5M) |
| Magnet | N/A | ? | N/A | ? | N/A | ? |
Manufacturer Part Number: BU-353S4
