Description

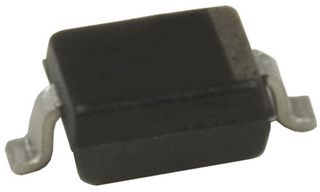

BZX384-C20,115 NXP Nexperia Diode: Zener, 0.3W, 20V, SMD, reel, tape, SOD323, 200mA
Low-power voltage regulator diodes encapsulated in a very small SOD323 (SC-76) plastic SMD package. The diodes are available in the normalized 5% (BZX384-C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 to 75 V.
Key Features
Total power dissipation: max. 300 mW
Tolerance C series approx. 5%
Non-repetitive peak reverse power dissipation: max. 40 W
Working voltage range: nominal 20V (E24 range)
Technical Attributes
Description Value Find similar Parts
Nominal Zener Voltage 20 V
ESD Protection No
Zener Voltage Tolerance 5 %
Typical Voltage Temperature Coefficient 16.4 mV/K
Mounting Surface Mount
Type Voltage Regulator
Maximum Zener Impedance 55 Ohm
Test Current 5 mA
Maximum Power Dissipation 300 mW
Operating Temperature -65 to 150 C
Max Processing Temp 260
Configuration Single
Lead Finish Tin
Maximum Reverse Leakage Current 0.05 uA
Manufacturer Part Number: BZX384-C20,115
NXP
