Description

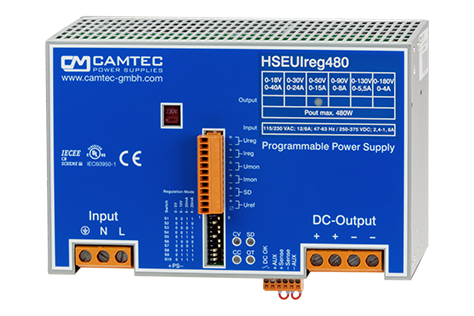

HSEuireg04801 Lab Power Supply DIN-Rail, 480W; 115V/230VAC, 2.6W/CUI free air
- 480W C/V programmable, Laboratory Power Supply scalable for test bench
- Multifunctional analogue Interface 0-5V/0-10V/0-20mA/4-20mA
- Real Time Monitoring
HSEUIreg04801
| Model | HSEUIreg04801 | ||||||
| Power | 480W | ||||||
| Nominal Input | 115/230Vac select | ||||||
| Input Range AC | 90..115Vac/184..265Vac | ||||||
| Input Range DC | 250… 375Vdc | ||||||
| Input Frequency | 47… 63Hz | ||||||
| Hold-Up Time | 50ms | ||||||
| Inrush Current Protection | 9,8Aeff / 13,8Apeak active limiter ±6% | ||||||
| Autostart | Soft start | ||||||
| Programmable Output Voltage | 0-18V | 0-30V | 0-50V | 0-90V | 0-130V | 0-180V | 0-240V |
| Programmable Output Current | 0-40A | 0-24A | 0-15A | 0-8A | 0-5,5A | 0-4A | 0-3A |
| Ripple & Noise mVpp | 40mV | 40mV | 100mV | 150mV | 200mV | 300mV | 400mV |
| Stability at Load Switch | ±0,2% | ||||||
| Transient Time | < 1ms | ||||||
| Efficiency | 90% | ||||||
| Basic Load | Idling-proof | ||||||
| Short Circuit Protection | Continuous | ||||||
| Ambient Operating Temperature | -20°C… +70°C | ||||||
| Cooling | Natural convection | ||||||
| Temperature Monitoring | Yes | ||||||
| Dimensions (WxHxD) | 200x130x114,5mm | ||||||
| IP-Range | IP20 | ||||||
| Safety Norms | CSA UL CE according to IEC60950-1 | ||||||
| Safety IEC | EN60950-1 EN50178 EN60204-1 | ||||||
| Safety Class 1(A) | VDE0100 VDE0805 | ||||||
| Input to Output Isolation | 3000Vac | ||||||
| Climatic Class, Humidity | 3k3, 95% non condensing | ||||||
| EMI | EN55022B | ||||||
| EMS | EN61000-6-2,3 | ||||||
| MTBF IEC61709 | 400000h | ||||||
| Programming Interface Voltage | 0… 5Vdc, 0… 10Vdc, 0-20mA, 4-20mA | ||||||
| Programming Interface Current | 0… 5Vdc, 0… 10Vdc, 0-20mA, 4-20mA | ||||||
| Monitoring Interface Voltage | 0… 5Vdc, 0… 10Vdc | ||||||
| Monitoring Interface Current | 0… 5Vdc, 0… 10Vdc | ||||||
| Power Good Relay | Yes | ||||||
| Sense Operation | Yes | ||||||
| Remote Shutdown | Yes | ||||||
| Reference Voltage | Yes | ||||||
| Ordering Options | Protective coating | ||||||
| Options | Isolating transformer for analogue interface, wall mount, USB interface | ||||||
Manufacturer:Camtec
Datasheet:camtec_hseuireg04801_e0613e.pdf
