Description

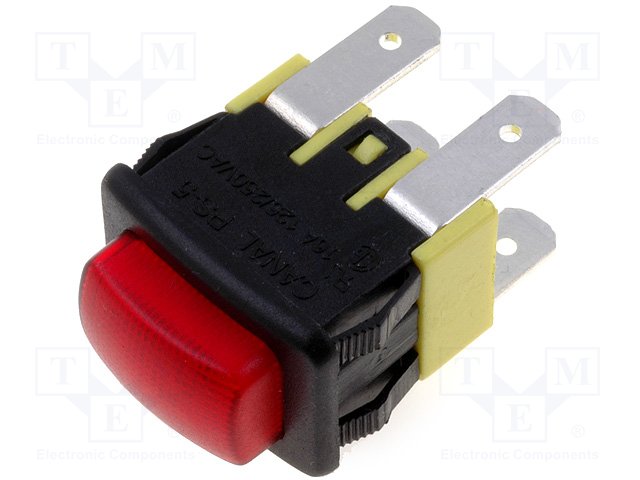

CANAL ELECTRONIC PS5-210-PL-BR-S^Switch: push-button; 2-position; DPST-NO; 16A/250VAC; red; 20mOhm RoHS
^Manufacturer CANAL ELECTRONIC / CANAL COMPONENTS
^Switch type push-button
^Stable positions number 2-position
^Contacts configuration DPST-NO
^AC contacts rating
^(at resistance load) 16 A / 250 VAC
^Actuator colour red
^Backlight colour red
^Illumination neon lamp 230V
^Leads 4.8×0.8mm connectors
^Switching method ON-OFF
^Operating temperature -20…125C
^Mounting hole diameter 19.2 x 12.9mm
^Mounting on panel
^Max. contact resistance: 20mO
^Body material thermoplastic
^Body dimensions 18.8 x 12.8 x 15mm
^Terminals plating silver plated
^Height above panel 7.5mm
^Contact material silver alloy
^Terminals material copper alloy
Manufacturer Part Number: PS5-210-PL-BR-S
Manufacturer: Canal
