Description

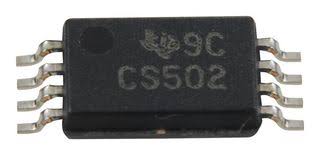

CDCS503PWR Texas Instruments Clock Buffer/Driver, Multiplier IC 1:1 108 MHz 8-TSSOP (0.173″, 4.40mm Width) RoHS
Specifications
Manufacturer: Texas Instruments
Product Category: Clock Buffer
Series: CDCS503
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Mounting Style: SMD/SMT
Package / Case: TSSOP-8
Brand: Texas Instruments
Max Output Freq: 108 MHz
Packaging: Reel
Packaging: Cut Tape
Product Type: Clock Buffers
Subcategory: Clock & Timer ICs
Unit Weight: 0.001376 oz
Mounting:Surface Mount
Package Type:TSSOP
Packaging:Tape and Reel
Pin Count:8
Operating Temperature (Max):85C
Operating Temperature (Min):-40C
Rad Hardened:No
Number of Outputs:1
Number of Clock Inputs:1
Operating Temperature Classification:Industrial
Operating Supply Voltage (Typ):3.3(V)
Operating Supply Voltage (Min):3(V)
Operating Temp Range:-40C to 85C
Operating Supply Voltage (Max):3.6(V)
Input Signal Type:Single-Ended
Configuration:Not Required
Duty Cycle:55(MAX)(%)
Fanout:1:1
Spread Spectrum:YES
Type:FANOUT BUFFER
Output Frequency:108(MHz)
Input Frequency:32(MHz)
Input Logic Level:LVCMOS
Output Logic Level:LVCMOS
Clock Input Freq:8 TO 32(MHz)
Manufacturer: Texas Instruments
MFG Part #: CDCS503PWR
