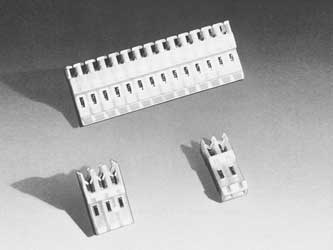

CE100F26-4-D ITW IDC Connector F 4 POS 2.54mm IDT RA Cable Mount Bag

ITW PANCON CONNECTORS CE100F26-4-D Wire-To-Board Connector, Mas-Con CE Series, 4 Contacts, Receptacle, 2.54 mm, IDC / IDT, 1 Rows

SKU: CE100F26-4-D Category: Tag: Brand:

Description

CE100F26-4-D WIRE TO BOARD CONNECTOR; Series:CE; Contact Termination:IDC / IDT; Gender:Socket; No. of Contacts:4; No. of Rows :1; Pitch Spacing:2.54mm; Contact Plating:Tin; Contact Material:Copper Alloy ;RoHS Manufacturer: ITW

Part Number: CE100F26-4-D

Agency Cert cULus
Product Family Pancon Connectors
Product Name MAS-CON® .100″ IDC Wire to Board Connector System
Brand Name End Connectors – Non-Polarized
Rohs Status COMPLIANT
Comp Type Socket
Term Method IDC
Wire Awg 26 awg
Contact Material Copper Alloy
Contact Plating Bright Tin over Nickel
Housing Material 6/6 Nylon
Dielectric Voltage 2.0 KVAC Min.
Flammability UL 94V-2
Insulation Resistance 5,000 Megohms Min
Mating Froce 1.17lbs/circuit max
Unmatting Force 0.3lbs/circuit
Packaging Type Bag
Standard Pack Size 500
Product Specification PS 1003
Sales Drawing KA-10036.pdf
Stackable YES
Polarized To Mating Part NO
Lock To Mating Part NO
Polarization NO
Breakaway NO
Current Max Per Contact 3.5 amps
Voltage Max 300 volts
Wire Size Awg 26
Num Rows 1
Pitch Mating .100″
Pitch Termination .100″
Spacing .100″
Gender Female

Manufacturer:ITW
Datasheet:KA-10036.pdf
