Description

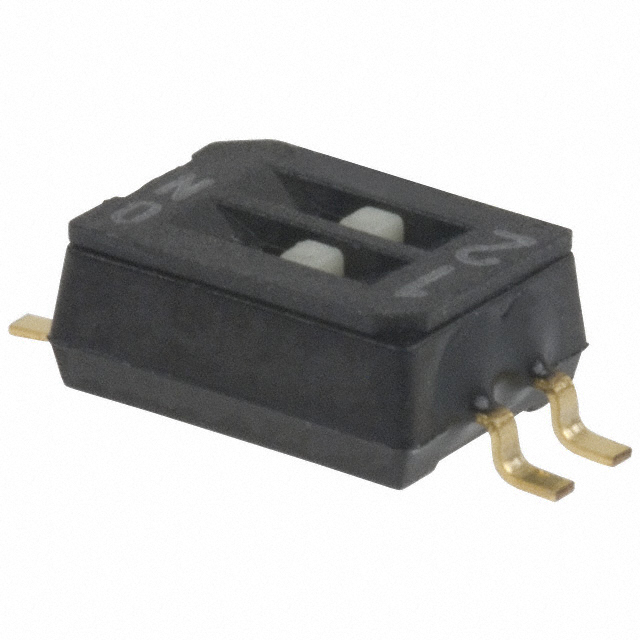

CHS-01TB1 Nidec Copal DIP Switches / SIP Switches smd slide 1 pos., gull wing, non-washable without seal tape SPST 0.1A 24VDC SMD ROHS
Specifications
Type Low Profile
Actuator Style
Recessed Slide
Pole Throw Configuration
SPST
Switch Configuration
OFF ON
Maximum Current Rating (A)
0.1@6VDC
Dielectric Strength
500VAC
Minimum Insulation Resistance (MOhm)
1000
Maximum Contact Resistance (mOhm)
50
Electrical Life (Cycles) 2000
Actuator Length (mm) 0
Number of Rows 1
Mounting Surface Mount
Termination Style Gull Wing
Number of Terminals 2
Terminal Length (mm) 1.3
Terminal Pitch (mm) 6.7
Base Material Cu Alloy
Housing Material Polyphenylene Sulphide
Body Orientation Straight
Minimum Operating Temperature (°C)-40
Maximum Operating Temperature (°C)85
Packaging Tape and Reel
Body Length (mm)5.4
Body Depth (mm)2.5
Body Height (mm)2.4
Product Weight (g)0.05
Product Length (mm)8
Product Depth (mm)2.5
Product Height (mm)2.5
Manufacturer:Electronic Components
Datasheet:Copal-chs.pdf
