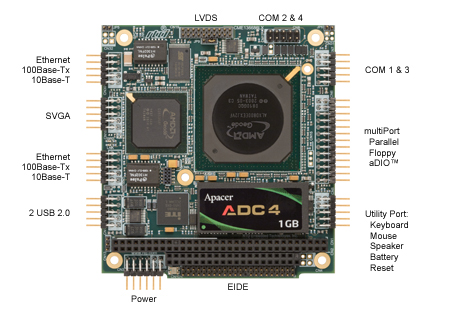

CME136686LX333HR PC/104 Single Board Computer 333 MHz AMD Geode LX

CME136686LX333HR-256 RTD Embedded Technologies PC/104 Single Board Computer & Controller Ultra Low Power 333 MHz AMD Geode LX with 256MB DDR SDRAM & 1GB Flash Drive

SKU: CME136686LX333HR-256 Category: Tag: Brand:

Description

Key Features

  • PC/104 Form Factor
  • PC/104 Stackable Bus Structure
  • Complete PC-compatible Single Board Computer (SBC)
  • AMD Geode LX800 333 MHz Processor
  • High Reliability PCB built to IPC-6012 Class 3 standard
  • Nonvolatile storage of CMOS settings without battery
  • Stackable 104-pin PC/104 AT bus
  • 256MB BGA DDR SDRAM (Surface-Mounted)
    • 333 MHz Data Rate
  • 32-pin SSD socket:
    • Removable Onboard Miniature Industrial ATA/IDE Flash Drive up to 8GB (1GB standard)
    • Flash Drive PIO Mode with BIOS-configured write protect function (available upon request)
    • Natively supported by all major operating systems
  • multiPort with Parallel Port, Floppy Drive Interface and 18-bit Digital I/O Port with Advanced Digital Interrupt Modes
  • Two Intel® 82551QM Fast Ethernet
  • 100Base-Tx and 10Base-T
  • Four RS-232/422/485 Ports
  • Two USB 2.0 (Universal Serial Bus) Ports
  • EIDE Controller with UltraDMA 33/66/100
  • AMD Geode LX Graphics Processor with LVDS Flat Panel output
  • Advanced power management features
    • ACPI 2.0 Compliant
    • Supported power down modes: S1 (Power On Suspend), S3 (Suspend to RAM), S4 (Hibernate), and S5 (Soft-Off)
  • Advanced Thermal Management
    • Hardware monitor for CPU temperature, board temperature, and power supply voltages
    • Passive Structural Heatsink & Heatpipes in IDAN and HiDAN System Configurations
  • 15 interrupt channels
  • 3 timer/counter channels
  • RTD Enhanced BIOS with USB Boot and Quick Boot modes
  • Supports MMX and 3DNow!™ instructions
  • Math coprocessor
  • Internal Cache
    • L1 – 64KB of instruction and 64KB data; L2 – 128KB
  • Y2K compliant real time clock (external battery required)
  • Watchdog timer
  • PS/2 Mouse Port
  • Keyboard Port
  • Speaker Port

Description

The CME136686LX is an ultra low-power PC/104 single board computer with a PC/104 stackable bus structure. This AMD Geode LX based CPU is an excellent solution for applications requiring real-time computing.

Technical Details

  • Two Ethernet Ports
    • Ethernet Controller
      • Intel 82551QM Fast Ethernet PCI Controller
      • Integrated 3KByte Transmit and 3Kbyte Receive FIFOs
    • Physical Layer
      • 100Base-Tx and 10Base-T
    • Easy to Use
      • Low Power Features
      • Status LEDs
      • Software configuration
  • SVGA CRT and LVDS Flat Panel interface
    • Analog SVGA Output
    • Resolution up to 1920 x 1440 pixels with up to 4,294 million colors
    • VGA, SVGA, XGA, XGA+, SXGA, and UXGA
    • High-performance memory
      • 24MB of shared DDR SDRAM memory
  • Four BIOS configurable RS-232/422/485 serial ports on two connectors, each connect configurable as:
    • One full RS-232 port with TxD, RxD, CTS, RTS, DSR, DTR, RI, and CD
    • One RS-422/485 port with TxD+, TxD-, RxD+, RxD-, with 120 ohm termination jumper
    • Two RS-232 ports:
      • One with TxD, RxD, CTS, and RTS
      • One with TxD and RxD
    • One RS-232 port with TxD and RxD, and one RS-422/485 port with TxD+, TxD-, RxD+, RxD-, with 120 ohm termination jumper
    • Jumper enabled two RS-422/485 ports each with TxD+, TxD-, RxD+, RxD-, with 120 ohm termination jumper
    • 16550 compatible UARTs for high-speed
  • multiPort function connector
    • Parallel port
      • SPP, PS/2 bi-directional, EPP & ECP
    • Advanced Digital I/O (aDIO)
      • One 8-bit port programmable as input or output
      • Eight bit-programmable I/O with Advanced Digital Interrupt Modes
        • Event Mode Interrupt generates an interrupt when any input bit changes
        • Match Mode Interrupt generates an interrupt when input bits match a preset value
        • External Strobe Mode latches 8 data inputs and generates and interrupt
      • Two Strobes can be configured as readable inputs.
    • Floppy controller interface – Requires RTD’s XK-CM49 multiPort Floppy Drive and Cable Kit
    • Optional Incremental Encoder or PWM interface
  • Two USB 2.0 (Universal Serial Bus) Ports
    • High-speed, full-speed, or low-speed
    • 500 mA @ 5 Vdc provided per port
    • USB Boot capability
  • UltraDMA-100 / 66 / 33 Master Mode PCI EIDE Controller
    • Transfer rate up to 100MB/sec using UltraDMA
    • Increased reliability using UltraDMA-33 transfer protocols
    • Support ATAPI compliant devices including DVD drives
    • 48-bit LBA support for hard drives larger than 137GB
  • Utility port
    • XK-CM77 Cable Kit Included
    • PC-AT compatible keyboard port
    • PS/2 Mouse Port
    • Speaker (0.1W output) port
    • Hardware Reset input
    • Battery input for Real Time Clock
  • Power I/O
    • Access to PC/104 Bus power pins
      • Gnd, ±12 & 5 VDC
    • Access to PC/104-Plus Bus pins
      • Gnd, ±12, 5 & 3.3 VDC
  • ISA Expansion Bus
    • Full ISA bus operation
    • Supports 8-bit (XT) and 16-bit (AT) peripherals
    • All ISA IRQ lines supported
    • DMA Supported via DDMA (Software-transparent)
    • Supports both I/O-mapped and Memory-mapped expansion cards
    • Positive Decode of PCI cycles
      • I/O and Memory ranges selectable in BIOS
  • Mating Connectors
    • Standard 10-pin 0.1″ DIL header (Utility, COM1 & 3, COM2 & 4, SVGA, USB, Ethernet)
    • Standard 12-pin 0.1″ DIL header (Power)
    • Standard 26-pin 0.1″ DIL header (multiPort)
    • Standard 20-pin 2mm DIL header (LVDS)
    • Standard 44-pin 2mm DIL header (EIDE)

Software

  • RTD Enhanced BIOS
    • Supports boot from IDE, USB, or Ethernet (PXE)
    • Serial Console Redirection
    • EEPROM-based CMOS Setup – No battery required to store settings
    • Fail Safe Boot – Load DOS even if no boot device is present
    • Special RTD Reliability Enhancements
  • Compatible with all x86 PC operating systems:
    • DOS (MS-DOS, ROM-DOS, PC-DOS)
    • Windows (XP, XP Embedded)
    • Linux (desktop and real-time versions)
    • RTOSes such as QNX, VxWorks, Windows CE, and xPC Target
    • Note: Some hardware interfaces may require special drivers
  • Includes pre-installed Datalight ROM-DOS
  • Drivers and support provided for DOS, Windows, and Linux
