Description

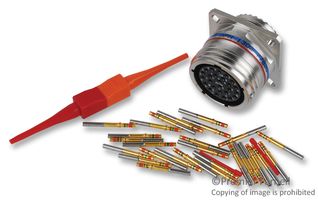

D38999/20FE26SN Amphenol Aerospace
The D38999/20FE26SN from Amphenol is MIL-DTL-38999 Series III wall mount receptacle with 26 contacts. MIL-DTL-38999 Series III connectors are available in wide range of shell materials and finishes with 48, 500, 1000 and 2000 hour salt spray plating exposure. These connectors offer high density contact arrangements in a miniature circular shell and combines high coupling durability. It is designed to withstand the extreme shock, exposure and vibration.
High reliability, moisture and corrosion resistant
Outstanding EMI, RFI shielding protection
500 mating cycles, high durability versions are available with 1500 mating cycles
Operates at extreme temperature range of -65C to +200C
Minimum insulation resistance is 5000Mohm (under 500VDC)
Scoop proof to eliminate the possibility of contact damage
IP67 environmental protection
Self locking connector system, triple start threaded coupling
Aluminium alloy body material with electroless nickel plating
Copper alloy crimp socket contacts with gold plating
Applications
Defence, Military & Aerospace, Industrial
Manufacturer Part Number: D38999/20FE26SN
Manufacturer: Amphenol
