Description

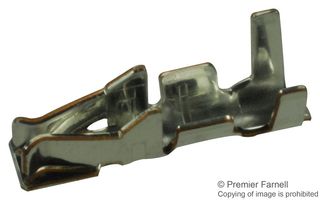

Hirose Electric DF11-2428SC Crimping Contact for Socket 24 – 28 AWG
CRIMP, Product Range:DF11 Series, Contact Gender:Socket, Wire Size AWG Min:28AWG, Wire Size AWG Max:24AWG, Contact Termination Type:Crimp, Contact Material:Phosphor Copper, For Use With:DF11 Socket Housings, RoHS
The DF11-2428SC is a part of DF11 series AWG24-28 tin plated socket contact. It has an operating temperature range of -30 °C to 85 °C.
Features:
Double rows of 2 mm pitch contact condensed within the 5 mm width.
Crimping or ID wiring is available with PCB to cable, cable to cable, and PCB to PCB Connectors.
Gold or Tin can be selected for the plating according to application, while an SMT product lineup.
Applicable wires: AWG#22 to AWG#30
Rated current of 2A
Rated voltage of 250VAC/VDC
Made of phosphor copper with tin plating
Wire size range from 28AWG to 24AWG
Operating temperature range from -40C to 85C
Using the full automatic IDC machine, complicated multi-harness wiring can be easily connected, reducing the man-hour and eliminating the manual work process
The DF11-2428SC from Hirose is a crimp socket contact. This contact is suitable for use with DF11 series 2mm double row socket connectors.
Specifications
Manufacturer: Hirose Electric
Product Category: Headers & Wire Housings
RoHS: RoHS Compliant Details
Brand: Hirose Connector
Product: Contacts
Termination Style: Crimp
Contact Gender: Socket (Female)
Contact Plating: Tin
Series: DF11
Contact Material: Phosphor Copper
Current Rating: 2 A
Insulation Resistance: 1000 MOhms
Packaging: Bulk
Factory Pack Quantity: 100
Termination Post Length: –
Voltage Rating: 250 V
Wire Gauge: 28-24
Manufacturer:Hirose Connector
Datasheet:JST/en_DF11_20130411.pdf
