Description
515-1011F Dialight Light Pipe Single Clear Rigid Round with Flat Top, 4.83mm Board Mount, Press Fit, Right Angle
LIGHT PIPE, SINGLE, ROUND, PCB, Length:14.6mm, Light Pipe Shape:Circular, No. of Light Pipes:1, Light Pipe Colour:Transparent, Light Pipe Mounting:Press Fit, Packaging:Each, For Use With:3mm LEDs, Material:Polycarbonate , RoHS

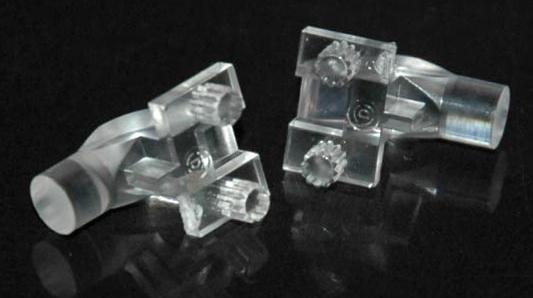

The 515-1011F is an Optopipe® Light Pipe for use with MicroLED SMT LEDs. This larger light emitting surface appears bright. It is reliably held in place by 2 press-fit pins located on either side of the light pipe element. This Optopipe® functions as a through-the-case indicator with a textured finish on the light-emitting surface that increases its viewing angle.
High transmissivity polycarbonate material
UL94V-0 Flammability rating
Wide viewing angle
Designed to replace 5mm right angle through-hole device
Secures to PCB by press-fit
Applications
LED Lighting
Warnings
ESD protection (circuit isolation from front panel).
Product Attributes
Categories Optoelectronics
Optics – Light Pipes
Manufacturer Dialight
Series 515
Color Clear
Configuration Single
Type Rigid
Mounting Type Board Mount, Press Fit, Right Angle
Lens Style Round with Flat Top
Lens Size 4.83mm
Manufacturer Part Number: 5151011F
