Description

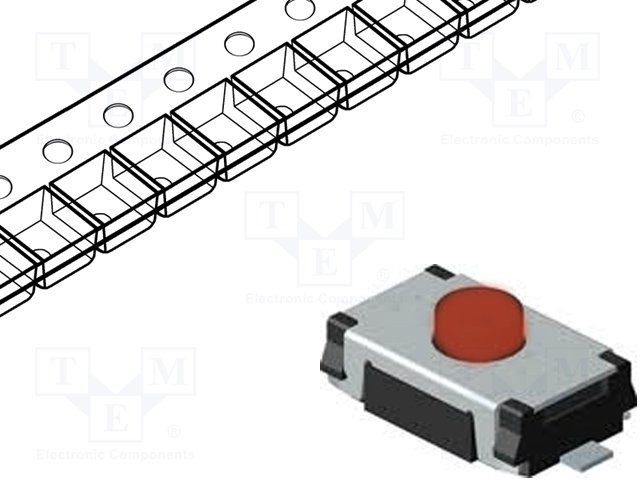

DIPTRONICS TAEF-25R-V-T/R Microswitch; 1-position; SPST-NO; 0.025A/24VDC; SMT; 4.5N; 3.8x6mm ROHS
Manufacturer DIPTRONICS
Switch type microswitch
Stable positions number 1-position
Contacts configuration SPST-NO
DC contacts rating
(at resistance load) 0.025 A / 24 VDC
Mounting SMT
Switching torque 4.5N
Body dimensions 3.8 x 6mm
Button height
(measured from PCB) 2.5mm
Switching method OFF-(ON)
Button shape round
Terminal pitch 1.4x8mm
Operating temperature -40…85°C
Leads for PCB
Electrical life 100000cycles
DIPTRONICS TAEF-25R-V-T/R
Microswitch; 1-position; SPST-NO; 0.025A/24VDC; SMT; 3N; 3.8x6mm
Manufacturer Part Number: TAEF-25R-V-T/R
Manufacturer: Diptronics
