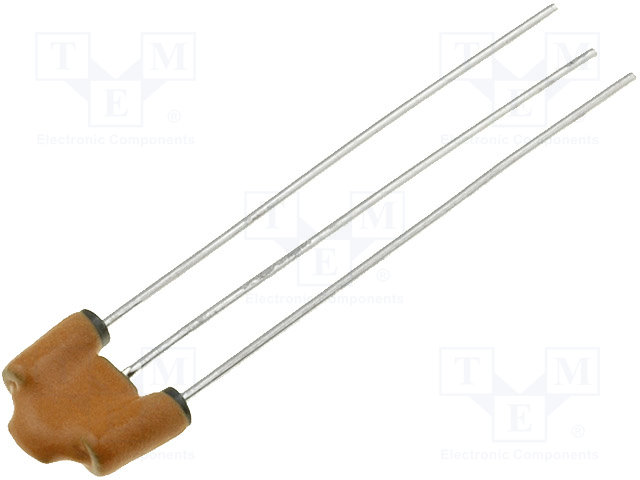

DSS6NF31C223Q55B Murata Electronics Murata, Signal Filter, 16 V dc, 6A Through Hole, Radial Termination, 8 x 2.54 x 7mm
Three Terminal Capacitors DSS6/DSS9 Series
Unlike conventional two terminal capacitors which have high residual inductance within the lead wires, thereby impeding the path of high frequency noise to ground, a three terminal capacitor forms a T-filter providing high inductance in series with the line, via two integral ferrite beads, and low inductance to ground via the bypass capacitor. Thus they provide increased attenuation with frequency over conventional decoupling capacitors
Note: See ‘key characteristics’ table for details of effective frequency ranges
Applications include:
High frequency noise suppression for d.c. power lines
Noise suppression in digital high impedance circuits
Noise suppression in high speed digital signals (clocks etc.)
Noise suppression in video IF signals
Specifications
Maximum Current Rating 6A
Maximum Voltage Rating 16 V dc
Mounting Type Through Hole
Termination Style Radial
Dimensions 8 x 2.54 x 7mm
Depth 2.54mm
Height 7mm
Length 8mm
Maximum Operating Temperature +85C
Minimum Operating Temperature -25C
Size 8.07.02.54mm Electrical capacity 22000pF
Height 2.54mm Rated Voltage 16VDC
Width 7.0mm Maximum service temperature 85C
Minimum service temperature -25C Length 8.0mm
Series name DSS6
Description EMI Filter LC-Circuit 6A 16VDC RDL Thru-Hole Bulk
Manufacturer Part Number: DSS6NF31C223Q55B
Manufacturer: Murata Power Solutions
