Description

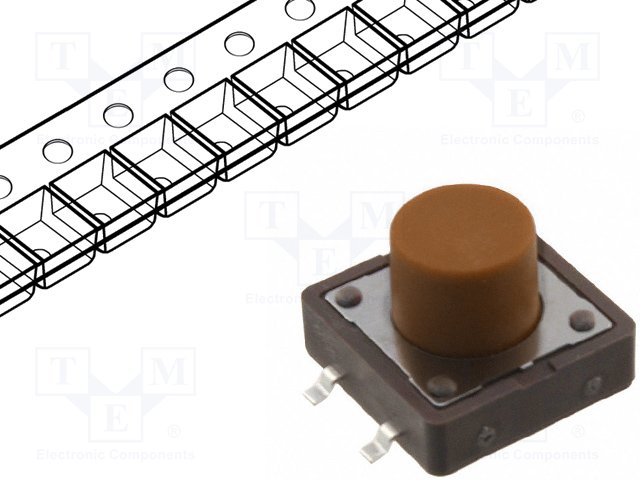

DTSM-25N-V-T/R DIPTRONICS SWITCH TACT 12x12MM 8.5MM 160gF BROWN SMD RoHS
DTSM-2 series tactile or tact SPST switches are designed to be used with small currents and feature a sharp click feel and positive tactile feedback. A small movement distance on these tact switches mean that the user experiences a distinct sensation when the switch ’clicks’ into place. This series of Apem tact switches have SMT terminals, low contact resistance and high reliability. The ultra-miniature and lightweight structure of this series of tact switches ensures suitability of high density mounting.
Vertical operating direction
Low contact resistance: 100m?
Insulation resistance >100M? at 500Vdc
Positive tactile feedback
Long life
Specifications
Contact Configuration SPST
Terminal Type Solder, Tab
Switch Operation Momentary
Actuator Colour Brown
Actuator Type Cap
Contact Current Rating 50 mA @ 12 V dc
Operating Force 160 gf
Maximum Operating Temperature +70°C
Operating Temperature Range -25 ? +70°C
Minimum Operating Temperature -25°C
Contact Material Phosphor Bronze
Manufacturer Part Number: DTSM-25N-V-T/R
Manufacturer: Diptronics
