Description

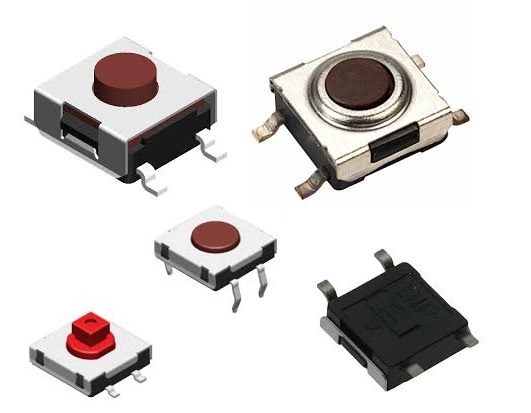

DTSMG-61-Y-V-T/R, DIPTRONICS, Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 12VDC 2.35N SMD 6x6x4.3 SMT AG yellow T/R
Termination SMT
Operating force 5.2 N
Model Construct Straight
Sealing IP40
Dimension 6×6 mm
Total high/long H4,3 mm
Operating temp. -25 to 70 °C
Operating life 50000 cycles
max.Volt/Switch 12 DC V
max.I / Switch 50 mA
Illuminated No Y/N
Actuator size 3.0 mm
Contact type SPST-NO
Button version Round
Ground No Y/N
Pitch 4.5 mm
Plating Ag
Automotive NO
Leadfree RoHS
Packaging REEL
Manufacturer Part Number: DTSMG-61Y-V-TR
Manufacturer: Diptronics
