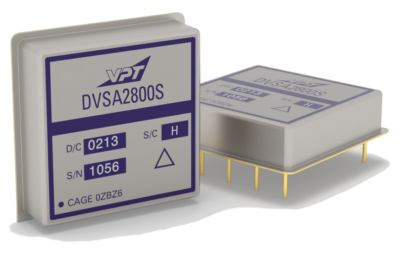

DVSA2805S/ES VPT DC-DC Regulated Power Supply Module

DVSA2805S/ES VPT DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid Hermetic Sealed Package-8

SKU: DVSA2805S/ES Category: Tag: Brand:

Description

The DVSA series of high reliability DC-DC converters is operable over the full military (-55 C to +125 C) temperature range with no power derating. Unique to the DVSA series are robust and effective input and output filters which provide dramatically reduced input and output noise performance when compared to other manufacturers competing devices. Operating at a nominal fixed frequency of 450 kHz, these regulated, isolated units utilize a high speed magnetic feedback design and well controlled undervoltage lockout circuitry to eliminate slow start
Manufacturer VPT Inc
Risk Rank 5.18
Analog IC – Other Type DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max 50 V
Input Voltage-Min 15 V
Input Voltage-Nom 28 V
JESD-30 Code S-XDMA-P8
JESD-609 Code e4
Number of Functions 1
Number of Outputs 1
Number of Terminals 8
Operating Temperature-Max 125 C
Operating Temperature-Min -55 C
Output Voltage-Max 5.075 V
Output Voltage-Min 4.925 V
Output Voltage-Nom 5 V
Package Body Material UNSPECIFIED
Package Shape SQUARE
Package Style MICROELECTRONIC ASSEMBLY
Qualification Status Not Qualified
Screening Level MIL-STD-883
Surface Mount NO
Technology HYBRID
Temperature Grade MILITARY
Terminal Finish GOLD
Terminal Form PIN/PEG
Terminal Position DUAL
Total Power Output-Max 5 W
Trim/Adjustable Output NO
Manufacturer:Electronic Components
Datasheet:DS-DVSA2800S-3.0.pdf
