Description

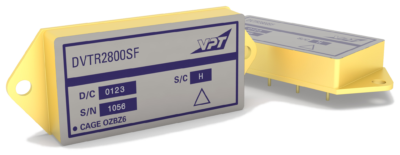

DVTR283R3SF/ES VPT / Delta Electronics High Reliability DC-DC Converter MIL-STD 1-Output 20W 28VIN/ 3.3VOUT 3A Hermetic Sealed Package-10. Save additional cost and board space with the DVTR Series. This unit provides uninterrupted operation through MIL-STD-704A transient spikes, sparing you the need for an additional filter. The DVTR also provides up to 30% more power in the same footprint than comparable competitive products.
Features:
Single outputs of 2.5V, 3.3V, 5V, 5.2V, 7V, 8V, 9.5V, 12V, 15V, 18V and 28V
Extra-wide 15V to 50V input range with 80V transient per MIL-STD-704A
Up to 40W output power
Full performance over -55C to +125C military temperature range
Fault tolerant magnetic feedback circuit
Excellent line and load regulation
Host of protection features
Extremely low profile (.405 inches) and light weight (52/55g) fully hermetic packaging
500Vdc input/output isolation
Fixed switching frequency
Ensure excellent thermal performance and unit isolation by using with the thermal pad TP-003
Manufacturer:Electronic Components
Datasheet:DS-DVTR2800S-11.0.pdf
