Description

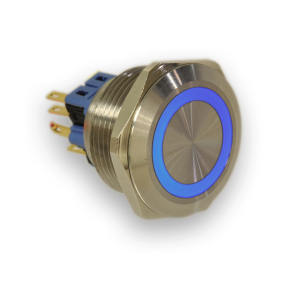

This anti-vandal switch features a long life expectancy and is water resistant to IP65 ratings. Illumination LED colors include red, yellow, orange, blue, green and white, as well as bi-color options. It is available with dot or ring illumination. Requires a 28mm panel cutout size.
Applications for this anti-vandal pushbutton switch include kiosks and ticket dispensers, among other designs that require vandal resistance.
Specifications for the PV9 series anti-vandal switch include:
Electrical Rating: 2A, 48VDC
Mechanical Life: 1,000,000 Cycles
Electrical Life: 50,000 Cycles
Contact Resistance: 50mΩ Max.
Insulation Resistance: 1000 MΩ Min. @ 500VDC
Dielectric Strength: 2,000VAC
Operating/Storage Temperature: -20°C to 55°C
Travel: 2.8mm
Moisture Protection: IP65
Contact Arrangement: SPDT or DPDT
Actuation Force: 660 gf
Panel Thickness: 1-10mm
Hex Nut Torque: 5-14Nm
Manufacturer Part Number: PV9
Manufacturer: E-Switch
