Description

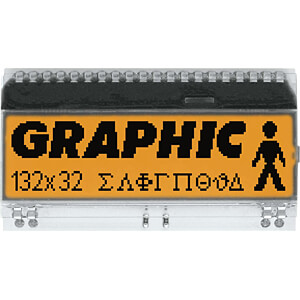

EA DOGM132W-5 Electronic Assembly / Display Visions LCD Graphic Display Modules & Accessories DOGM Grapic 132×32 White Background SPI 132 x 32 RoHS
The EA DOG series of monochrome graphic display modules, from Electronic Assembly, was specially developed for low-power hand-held applications; allowing these display modules to be operated at 3.3V. Optional LED backlights (such as stock no. 758-8664) can simply be clipped to the display modules to create different effects, see datasheet for details.
Specifications
Manufacturer:ELECTRONIC ASSEMBLY
Product Category:LCD Graphic Display Modules & Accessories
RoHS: Details
Resolution:132 x 32
Display Mode:Transflective
Fluid Type:FSTN Positive
Background Color:White
Packaging:Bulk
Operating Temperature Range:- 20 C to + 70 C
Style:LCD Graphic Display
Brand:ELECTRONIC ASSEMBLY
Operating Supply Voltage:3.3 V to 5 V
Product Type:LCD Graphic Displays
Factory Pack Quantity:36
Subcategory:Displays
Viewing Area – W x H:48.17 mm x 13.27 mm
Unit Weight:0.211644 oz
Manufacturer: Electronic Assembly
MFG Part #: EA-DOGM132W-5
